Exhaust Gas Recirculation (EGR) Valve: Installation
WARNING: This page is about a different variant/trim than selected.
-

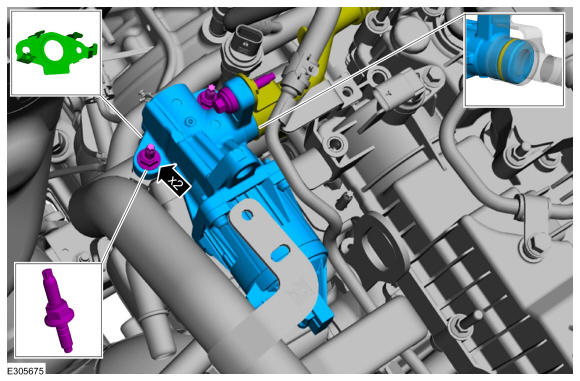

- Install the new EGR valve gasket and studs.
Torque: 44 lb.in (5 Nm)
- Inspect the o-ring and replace if necessary. Lubricate the o-ring with clean engine oil.
- Install the bolt.
Torque: 97 lb.in (11 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- To install, reverse the removal procedure.
