Exhaust Gas Recirculation (EGR) Inlet Tube: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Remove the EGR cooler. Refer to: Exhaust Gas Recirculation (EGR) Valve .
Remove the EGR coolant outlet temperature sensor. Refer to: Exhaust Gas Recirculation (EGR) Coolant Outlet Temperature Sensor .

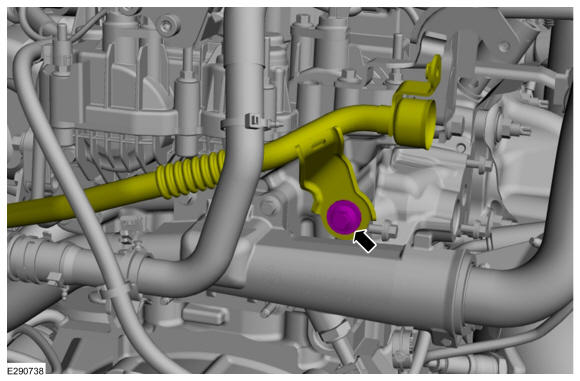

Remove the bolt.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

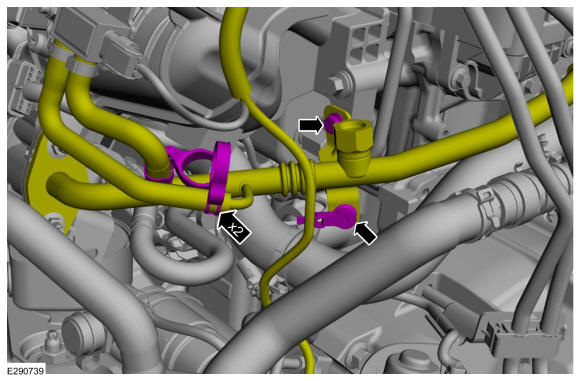

- Loosen the clamps and position aside the differential pressure feedback sensor hoses.
- Detach the retainers and position aside the wiring harness.
- Remove the bolt.
  Torque: 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

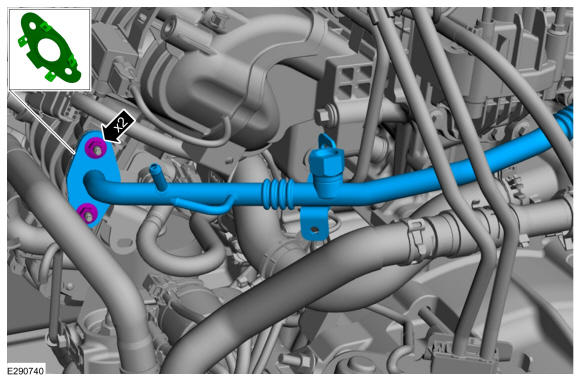

- Remove the fasteners and EGR inlet tube.
  Torque: 97 lb.in (11 Nm)
- Remove and discard the gasket.

Courtesy of FORD MOTOR COMPANY
