Exhaust Gas Recirculation (EGR) Cooler: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Remove the EGR valve. Refer to: Exhaust Gas Recirculation (EGR) Valve .
Remove the EGR back pressure sensor. Refer to: Exhaust Gas Recirculation (EGR) Back Pressure Sensor .

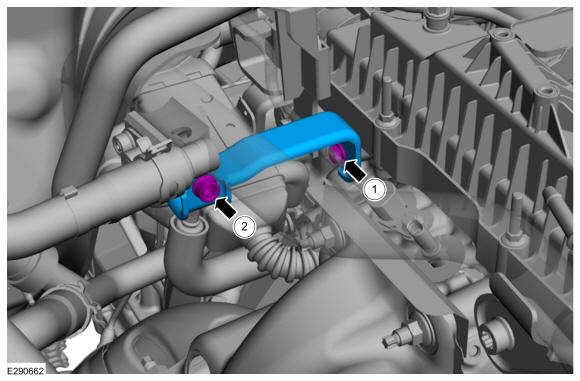

1. Remove the fastener.
  Torque: 97 lb.in (11 Nm)
2. Remove the fastener and mounting bracket.
  Torque: 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

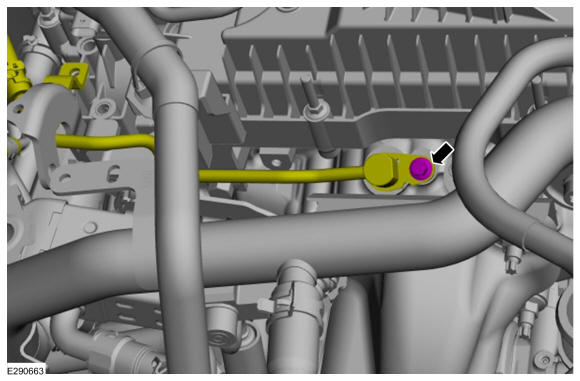

Remove the bolt and the coolant tube.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

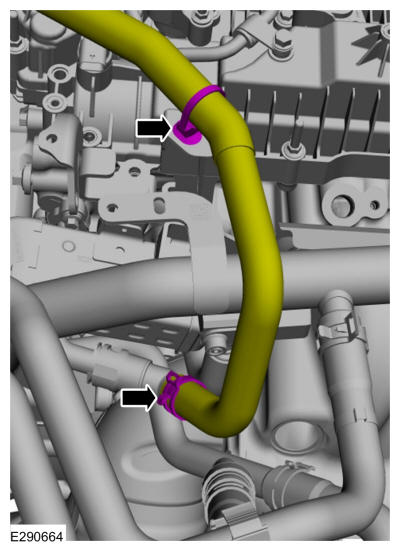

Loosen the clamp and detach the retainer.

Courtesy of FORD MOTOR COMPANY

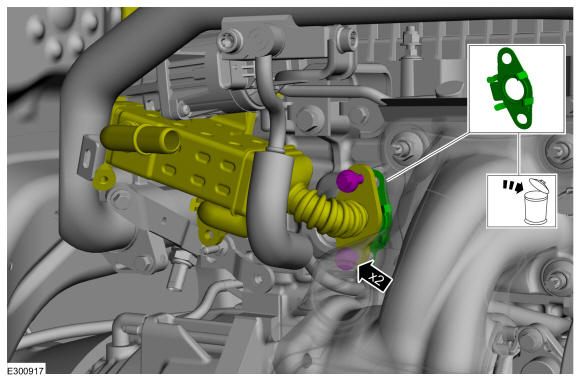

- Remove the fasteners.
  Torque: 97 lb.in (11 Nm)
- Remove and discard the gasket.
Courtesy of FORD MOTOR COMPANY

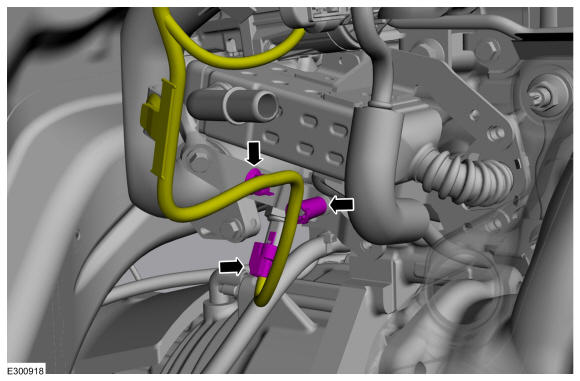

Disconnect the electrical connector and detach the retainer clips.

Courtesy of FORD MOTOR COMPANY

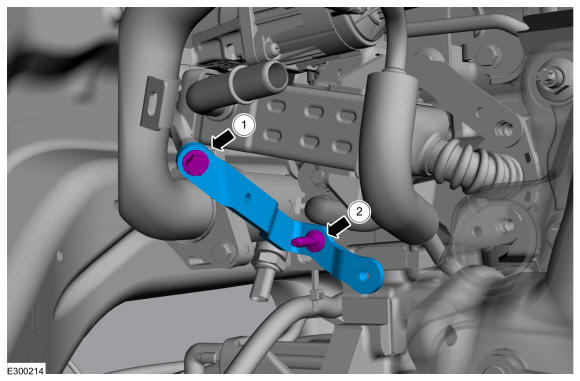

1. Remove the fastener.
  Torque: 97 lb.in (11 Nm)
2. Remove the fastener and EGR mounting bracket.
  Torque: 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

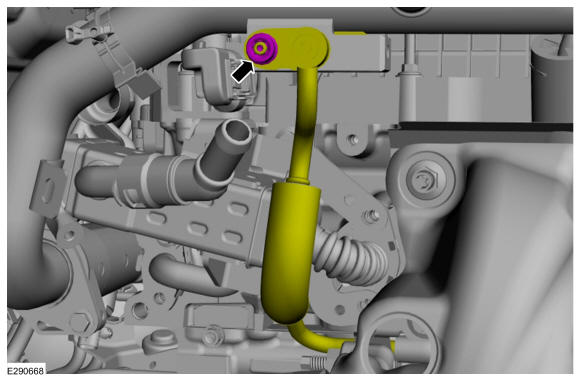

Remove the fastener and position aside the coolant hose.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

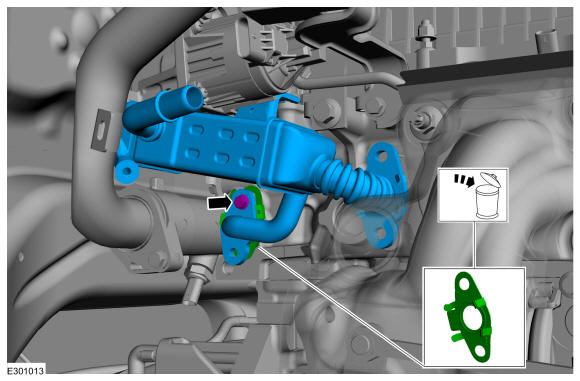

- Remove the bolt.
  Torque: 97 lb.in (11 Nm)
- Remove and discard the gasket.

Courtesy of FORD MOTOR COMPANY
