Exhaust Gas Recirculation (EGR) Cooler: Installation

WARNING: This page is about a different variant/trim than selected.

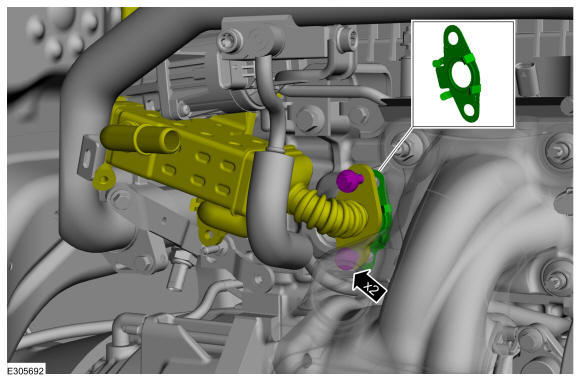

    • Tighten the bolts.

      Torque: 97 lb.in (11 Nm)

    • Install the new gasket.

    GFD513568Courtesy of FORD MOTOR COMPANY

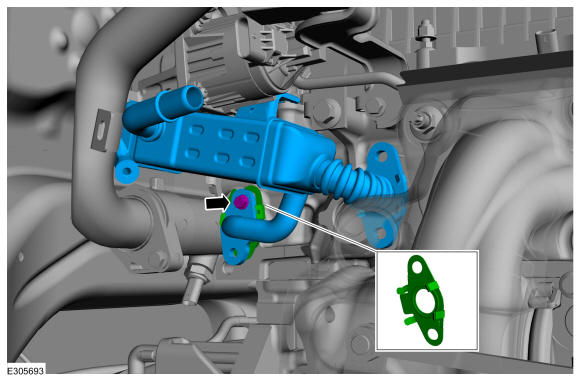

    • Tighten the bolts.

      Torque: 97 lb.in (11 Nm)

    • Install the new gasket.

    GFD513569Courtesy of FORD MOTOR COMPANY
  3. To install, reverse the removal procedure.
