Crankcase Ventilation Tube: Installation

WARNING: This page is about a different variant/trim than selected.

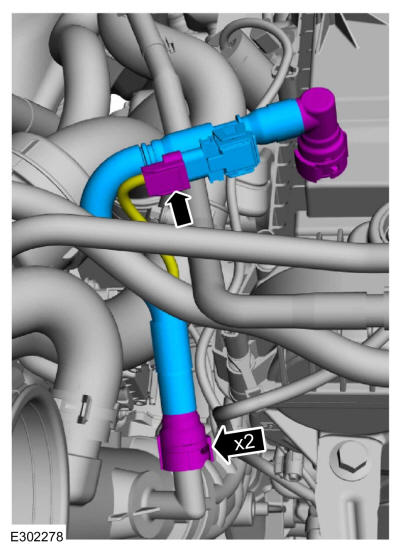

- Install the new crankcase vent tube.
- If the replacement crankcase vent tube part comes with no crankcase pressure sensor, reprogram the PCM. Refer to: Module Programming .
- If the replacement crankcase vent tube came without a crankcase pressure sensor, tape the wiring harness electrical connector back to the wiring harness.
- If the replacement crankcase vent tube comes with a crankcase pressure sensor, connect the wiring harness electrical connector.
Courtesy of FORD MOTOR COMPANY

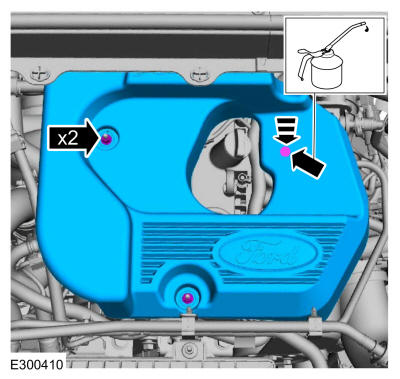

1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

  Lubricate each grommet with silicone grease.

  Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)
2. Position the engine appearance cover onto engine with the grommet aligned with the stud.
3. Press down on the engine appearance cover at the grommet location to attach the grommet onto the stud and install the nuts.
  Torque: 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY
Install the suspension support bar and the bolts.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
