EGR System

WARNING: This page is about a different variant/trim than selected.

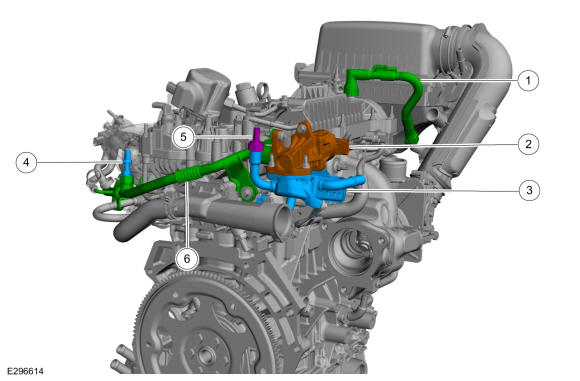

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Crankcase Ventilation Tube.
2	EGR valve.
3	EGR cooler.
4	EGR coolant outlet temperature sensor.
5	EGR back pressure sensor.
6	EGR inlet tube.

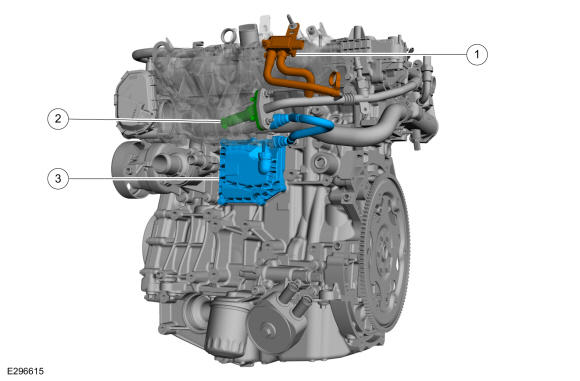

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Differential pressure feedback EGR sensor.
2	EGR outlet tube.
3	Crankcase vent oil separator.
