Muffler and Tailpipe: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Health and Safety Precautions .
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

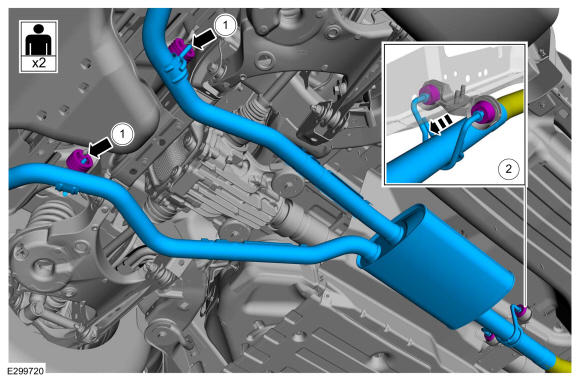

- Remove the rear exhaust isolator nuts.
Torque: 26 lb.ft (35 Nm)

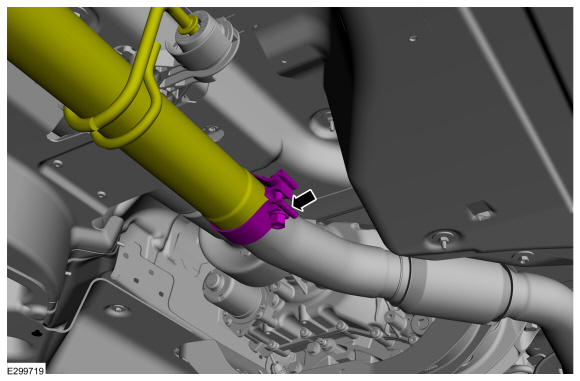

- Loosen the exhaust clamp.
Torque: 41 lb.ft (55 Nm)
-

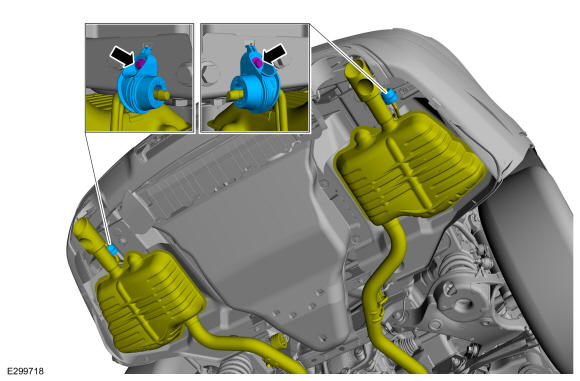

- Detach the exhaust isolators.
- Slide the muffler and tailpipe rearward out of the isolators and remove the muffler and tailpipe.
