Muffler Inlet Pipe: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Health and Safety Precautions .
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

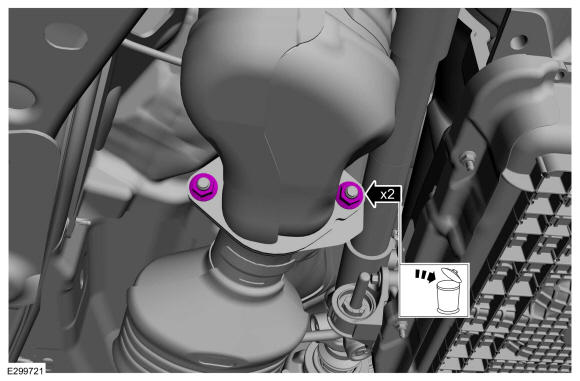

- Remove and discard the nuts.
Torque: 30 lb.ft (40 Nm)

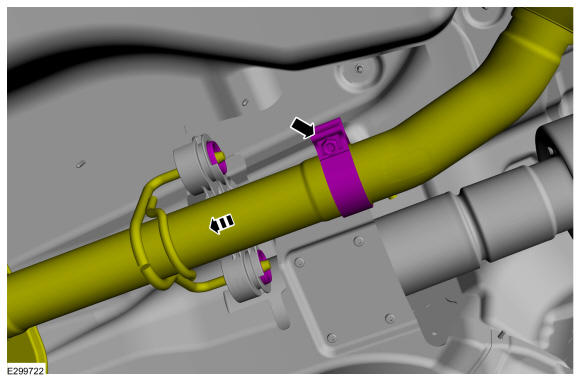

- Loosen the exhaust clamp.
Torque: 41 lb.ft (55 Nm)

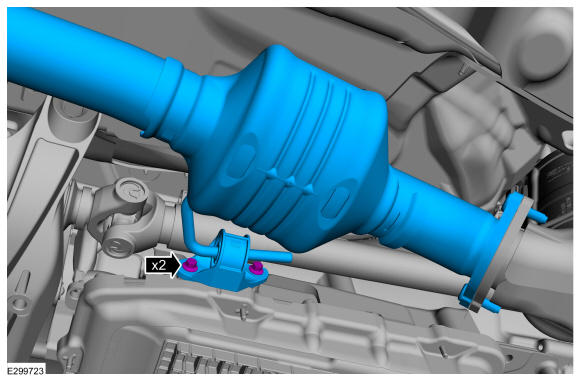

- Remove the isolator hanger bracket bolts and the muffler inlet pipe.
Torque: 177 lb.in (20 Nm)
-

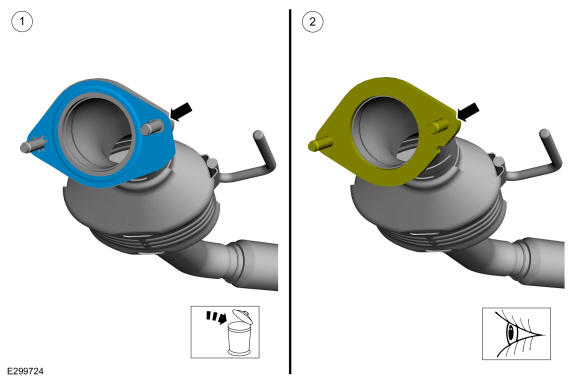

- Remove and discard the gasket.
- Clean and inspect the gasket surface.
