Catalytic Converter: Installation

WARNING: This page is about a different variant/trim than selected.

All vehicles

Clean all exhaust connections before reassembly.

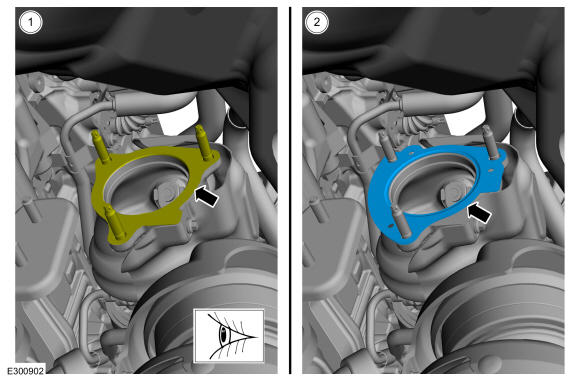

1. Clean and inspect the gasket surface and the studs. Replace the studs if necessary.
  Torque: 18 lb.ft (25 Nm)
2. NOTE: Make sure that a new gasket is installed.

  Install a new gasket.
Courtesy of FORD MOTOR COMPANY
NOTE: The nuts are only finger tight in this step.

Install the catalytic converter. Install the mounting bracket and the nuts.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new nuts are installed.

Install the catalytic converter nuts.

Torque: 35 lb.ft (47.5 Nm)

Courtesy of FORD MOTOR COMPANY

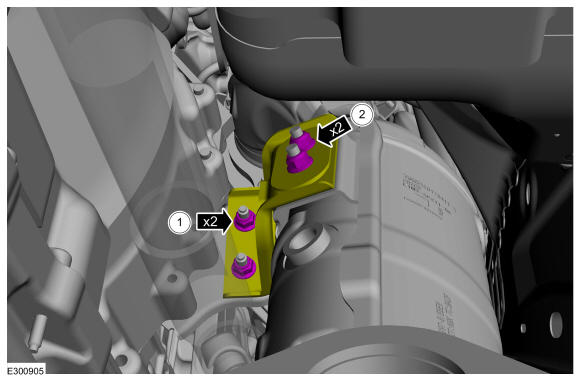

1. Tighten the nuts.
  Torque: 18 lb.ft (25 Nm)
2. Tighten the PIA nuts.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

4x4 vehicles
Install the front Driveshaft. Refer to: Front Driveshaft .
All vehicles
To install, reverse the removal procedure.
Check the exhaust system for leaks.
