Exhaust System - Component Location
WARNING: This page is about a different variant/trim than selected.

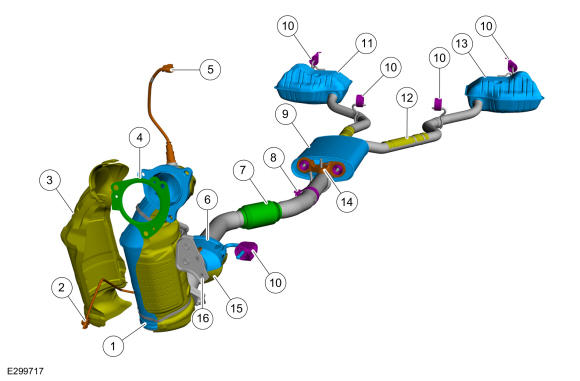

| Item | Description |
|---|---|
| 1 | Catalytic converter |
| 2 | Exhaust gas oxygen sensor - downstream |
| 3 | Catalytic converter heat shield |
| 4 | Gasket |
| 5 | Exhaust gas oxygen sensor - upstream |
| 6 | Catalyst converter |
| 7 | Exhaust flexible Pipe |
| 8 | Exhaust clamp |
| 9 | Resonator |
| 10 | Isolators |
| 11 | RH muffler |
| 12 | Tailpipe heat shield |
| 13 | LH muffler |
| 14 | Exhaust hanger bracket |
| 15 | Heat shield |
