Fuel Tank Draining

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	292-00004 Fuel Tanker 100 GPM

Draining

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

WARNING: Before beginning any service procedure in this service information, refer to Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the battery ground cable. Refer to: Battery Disconnect And Connect .
Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

NOTE: Only use the specified general equipment.

NOTE: Be prepared to collect escaping fluid

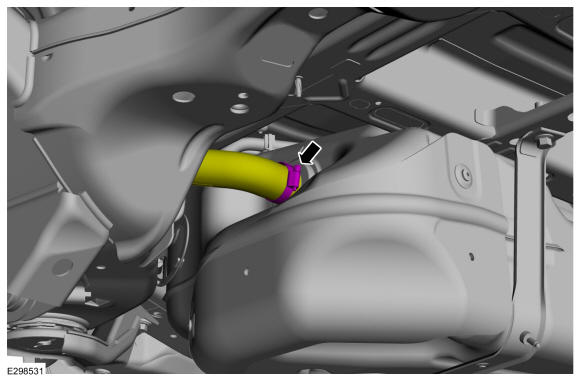

Loosen the clamp and disconnect the hose. Position the hose aside.

Torque

: 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Use suitable paper to absorb any escaping fluid.

NOTE: Some residual fuel may remain in the fuel tank filler pipe. Carefully drain into a suitable container.

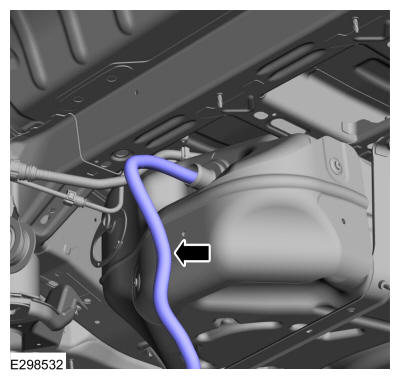

Insert the hose from the fuel storage tanker and siphon the fuel through the hose. Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.

Courtesy of FORD MOTOR COMPANY
