High-Pressure Fuel Pump: Installation

WARNING: This page is about a different variant/trim than selected.

All Vehicles

  1. NOTE: Only rotate the crankshaft Clockwise (CW) or damage to the engine may occur.
    NOTE: The drive lobe for the high-pressure fuel pump must be at BDC (bottom dead center) for the high-pressure fuel pump installation.

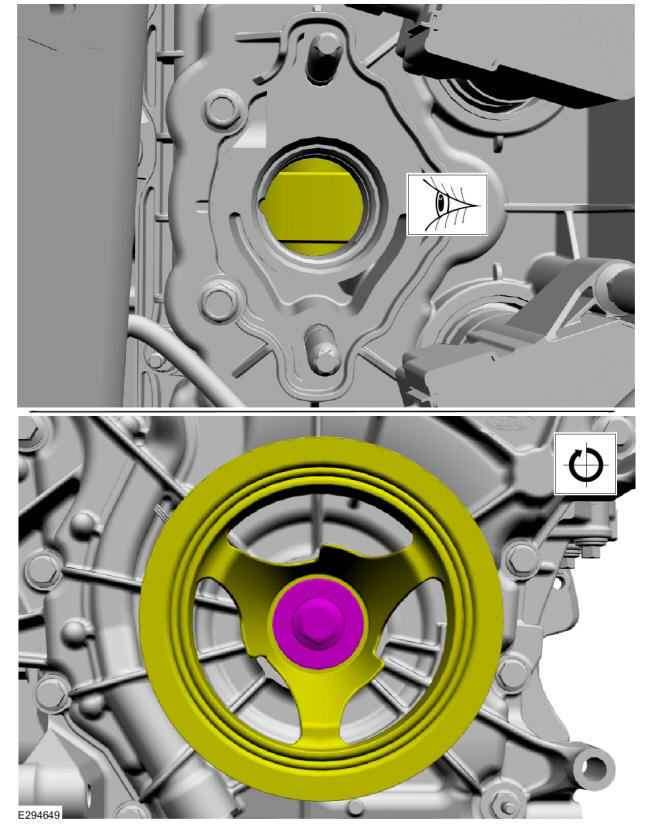

    Using the crankshaft pulley bolt, turn the crankshaft until the high-pressure fuel pump drive lobe is at BDC (bottom dead center).

    GFD513270Courtesy of FORD MOTOR COMPANY

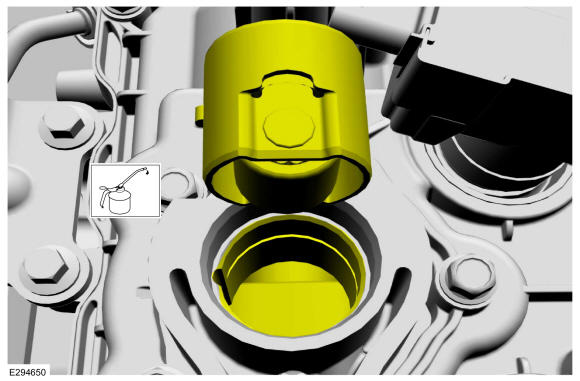

  2. Apply clean engine oil to the high-pressure fuel pump mounting pedestal bore, the drive lobe and the roller tappet. Refer to: Specifications .
    GFD513271Courtesy of FORD MOTOR COMPANY

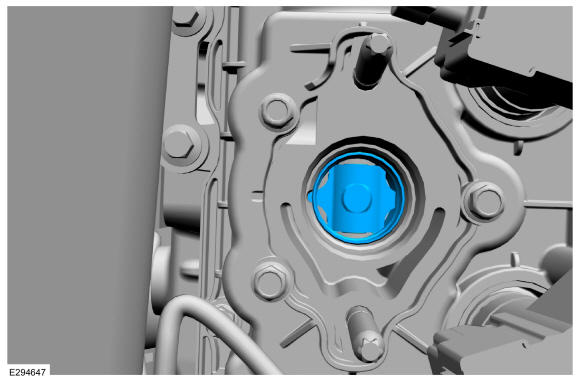

  3. Install the high-pressure fuel pump roller tappet.
    GFD513268Courtesy of FORD MOTOR COMPANY
  4. NOTE: Apply clean engine oil to the high-pressure fuel pump O-ring seals.

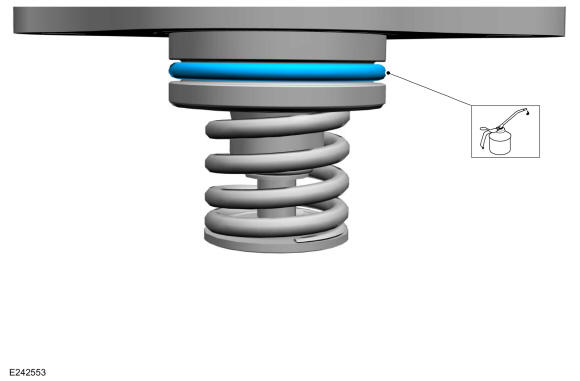

    Install a new high-pressure fuel pump O-ring seal and lubricate with clean engine oil. Refer to: Specifications .

    GFD513272Courtesy of FORD MOTOR COMPANY

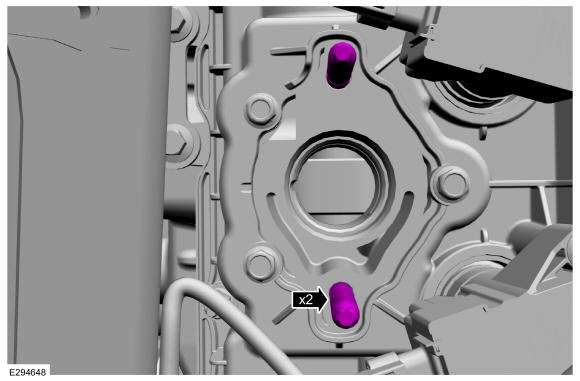

  5. If removed, install and tighten the high-pressure fuel pump mounting studs.

    Torque: 106 lb.in (12 Nm)

    GFD513269Courtesy of FORD MOTOR COMPANY

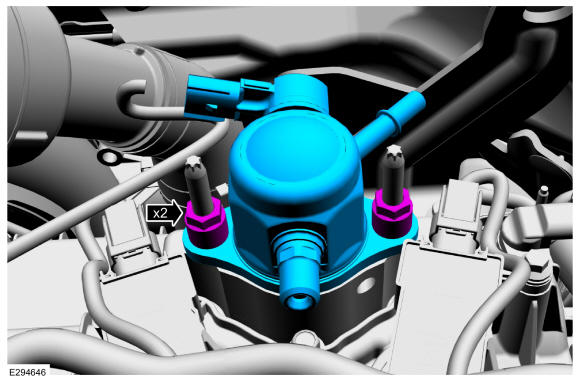

  6. Install the high-pressure fuel pump, then install the mounting nuts finger tight. Alternately tighten each high-pressure fuel pump nut one complete revolution until seated. Tighten the fuel high-pressure fuel pump nuts in the following 2 stages.

    Torque : Stage 1: 177 lb.in (20 Nm) Stage 2: 45 deg.

    GFD513266Courtesy of FORD MOTOR COMPANY

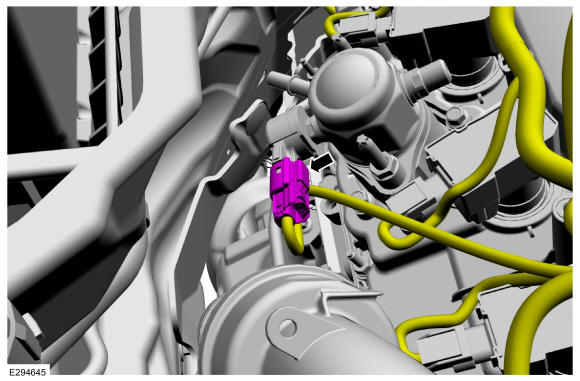

  7. Connect the high-pressure fuel pump electrical connector.
    GFD513273Courtesy of FORD MOTOR COMPANY

    U611 Aviator

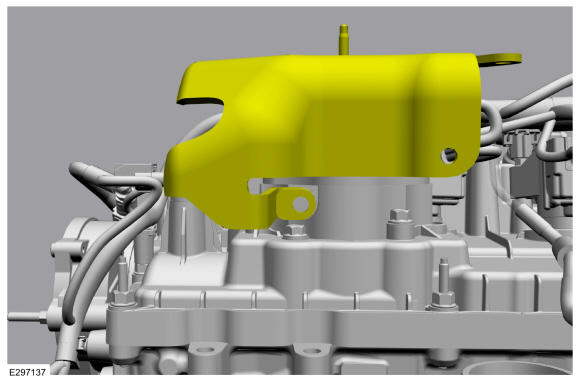

  8. Position the high-pressure fuel pump shield so that the high-pressure fuel pump fuel feed can be connected.

    Torque: 18 lb.ft (25 Nm)

    GFD513274Courtesy of FORD MOTOR COMPANY

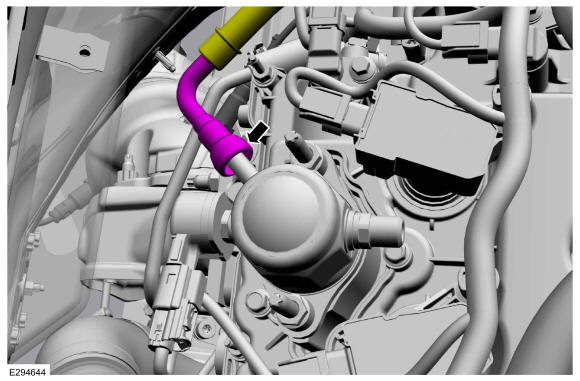

  9. Connect the high-pressure fuel pump fuel feed spring lock coupling. Refer to: Spring Lock Couplings .
    GFD513264Courtesy of FORD MOTOR COMPANY

    U625 Explorer

  10. Connect the high-pressure fuel pump fuel feed spring lock coupling. Refer to: Spring Lock Couplings .
    GFD513264Courtesy of FORD MOTOR COMPANY

    All Vehicles

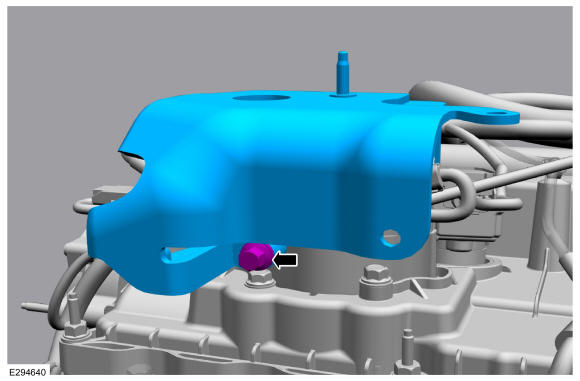

  11. Install the high-pressure fuel pump shield, then install and tighten the bolt.

    Torque: 18 lb.ft (25 Nm)

    GFD513263Courtesy of FORD MOTOR COMPANY

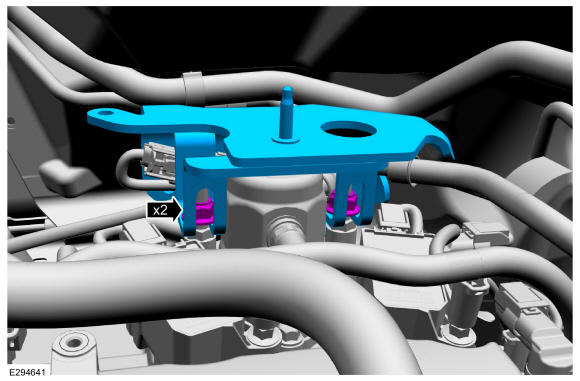

  12. Install and tighten the high-pressure fuel pump shield nuts,

    Torque: 18 lb.ft (25 Nm)

    GFD513262Courtesy of FORD MOTOR COMPANY
  13. NOTE: In stage 4, if the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 37 lb.ft (50 Nm), then that high pressure fuel tube must be discarded and replaced with another new high-pressure fuel tube.
    NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas. Refer to the torque wrench adapter formula in the graphic below.
    G00468730Courtesy of FORD MOTOR COMPANY
    NOTE: Make sure that a new high-pressure fuel tube is installed.

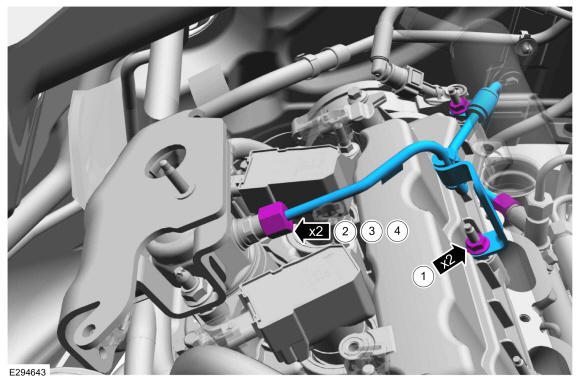

    Install the high-pressure fuel tube and bracket nuts, tighten the high-pressure fuel tube flare nuts and bracket nuts finger tight.

    Torque : Stage 1: Tighten the high-pressure fuel tube bracket nuts to, : 89 lb.in (10 Nm) Stage 2: Tighten the high-pressure fuel tube flare nuts to, : 62 lb.in (7 Nm) Stage 3: Tighten the high-pressure fuel tube flare nuts to, : 89 lb.in (10 Nm) Stage 4: Tighten the high-pressure fuel tube flare nuts an additional, : 25 deg.

    GFD513261Courtesy of FORD MOTOR COMPANY
  14. NOTE: When removing or installing the fuel injection pump noise insulator, spreading the openings will reduce the risk of damage.

    Install the fuel injection pump noise insulator.

    GFD513250Courtesy of FORD MOTOR COMPANY
  15. Install the intake manifold. Refer to: Intake Manifold .
  16. Attach the coolant hose retainer.
    GFD513249Courtesy of FORD MOTOR COMPANY
  17. With hybrid engine only, install the harness, then install and tighten the wire harness retaining nut.

    Torque: 106 lb.in (12 Nm)

    GFD513248Courtesy of FORD MOTOR COMPANY
  18. Install the cowl panel. Refer to: Cowl Panel .
  19. Connect the battery negative cable. Refer to: Battery Disconnect and Connect .
  20. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
