3.0L EcoBoost
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|

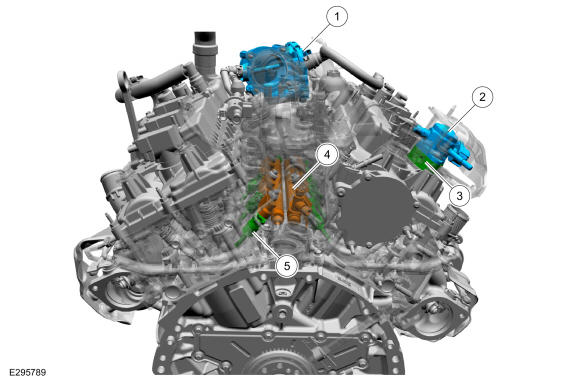

| Item |
Description |
| 1 |
Throttle body |
| 2 |
High-pressure fuel pump |
| 3 |
High-pressure fuel pump drive unit |
| 4 |
Direct injection fuel rail |
| 5 |
Direct injection fuel injector |
