Throttle Body: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the charge air cooler outlet tube. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
- Disconnect the wire harness retainer, then disconnect the throttle body electrical connector.

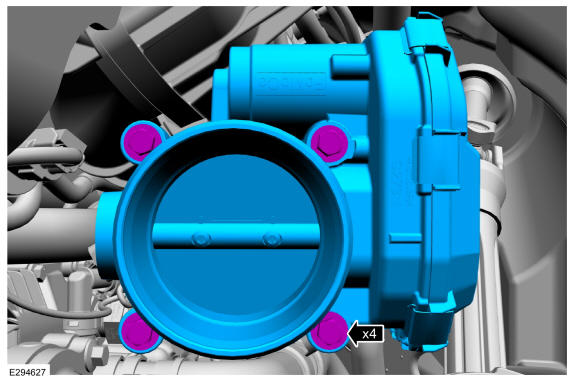

- Remove the throttle body bolts, then remove the throttle body.
