High-Pressure Fuel Pump Drive Unit: Installation
WARNING: This page is about a different variant/trim than selected.

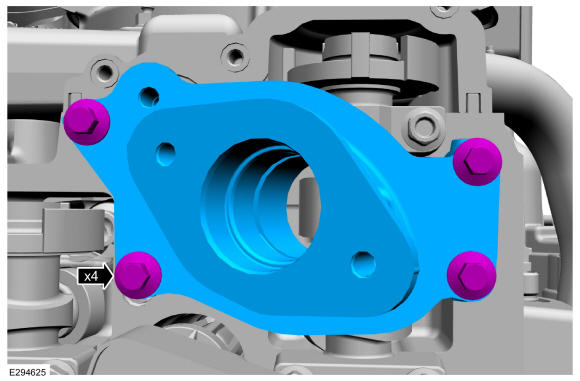

- Make sure that the mating faces are clean and free of corrosion and foreign material. Install the high-pressure fuel pump drive unit, then install and tighten the high-pressure fuel pump drive unit bolts.
Torque: 97 lb.in (11.0 Nm)
- Install the valve cover. Refer to: Valve Cover .
