2.3L EcoBoost
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|

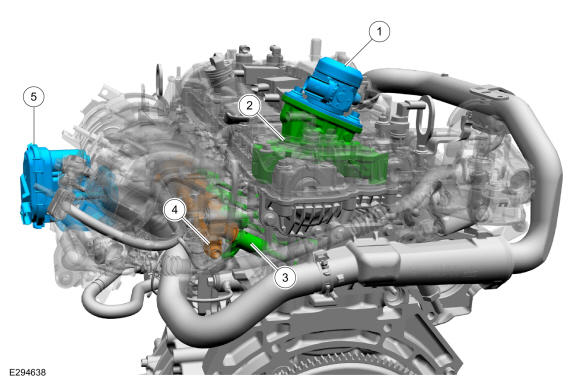

| Item |
Description |
| 1 |
High-pressure fuel pump |
| 2 |
High-pressure fuel pump drive unit |
| 3 |
Fuel injectors (removed with the fuel rail) |
| 4 |
Fuel rail |
| 5 |
Throttle body |
