Transmission Fluid Heater Coolant Control Valve: Removal

WARNING: This page is about a different variant/trim than selected.
  1. GFD513089Courtesy of FORD MOTOR COMPANY
    GFD123035Courtesy of FORD MOTOR COMPANY

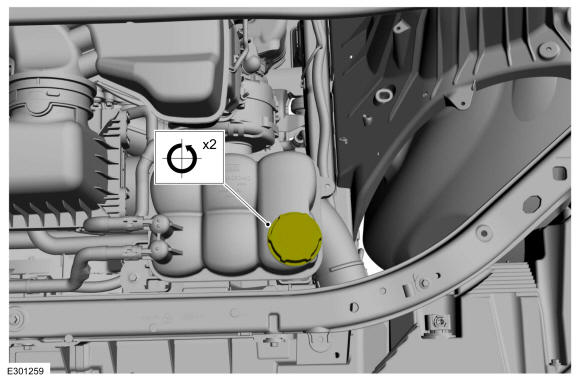

    WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.

    Loosen the pressure relief cap.

    GFD513090Courtesy of FORD MOTOR COMPANY

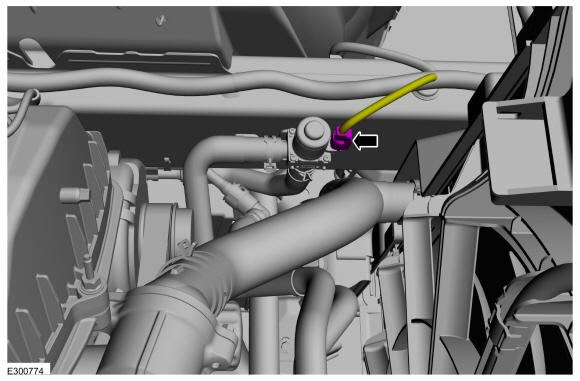

  2. Disconnect the coolant control valve electrical connector.
    GFD513091Courtesy of FORD MOTOR COMPANY
  3. Clamp off the coolant control valve hoses.
    GFD513092Courtesy of FORD MOTOR COMPANY
  4. Release the clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
    GFD513093Courtesy of FORD MOTOR COMPANY

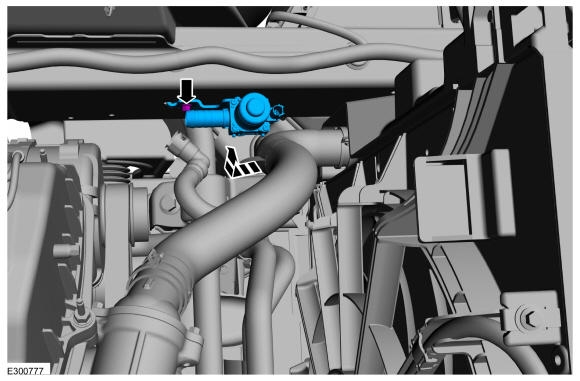

  5. Remove the bolt and the transmission fluid heater coolant control valve.

    Torque: 62 lb.in (7 Nm)

GFD513094Courtesy of FORD MOTOR COMPANY
