Removal And Installation: Thermostat: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the air cleaner. Refer to: Air Cleaner .
-

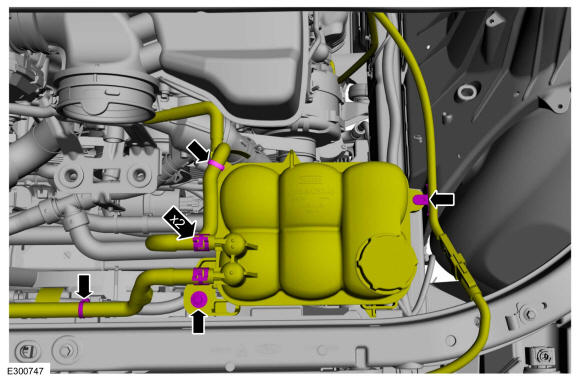

- Detach the coolant hose retainers and the electrical wiring harness retainer.
- Release the clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
- Remove the bolt and position the degas bottle aside.
Torque: 44 lb.in (5 Nm)
-

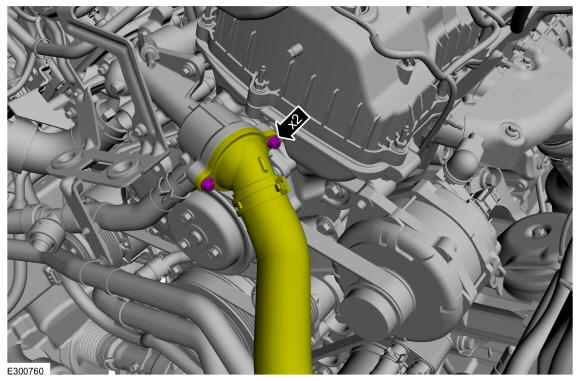

NOTE: During installation, make sure the coolant outlet connection is fully seated on the thermostat housing before tightening the bolts.
Remove the bolts and detach the coolant inlet connector.
Torque: 89 lb.in (10 Nm)
-

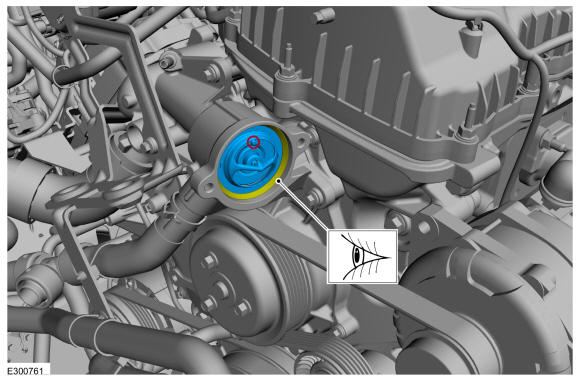

NOTE: During installation verify the thermostat vent hole is at the 11 o'clock position.
Remove the thermostat. Inspect the O-ring seal and replace if necessary.
