Block Heater: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Remove the generator. Refer to: Generator - 3.3L Duratec-V6 .
NOTE: Access the block heater from the inner fender well.

NOTE: Make sure the block heater wiring is routed and secured away from rotating or hot components.

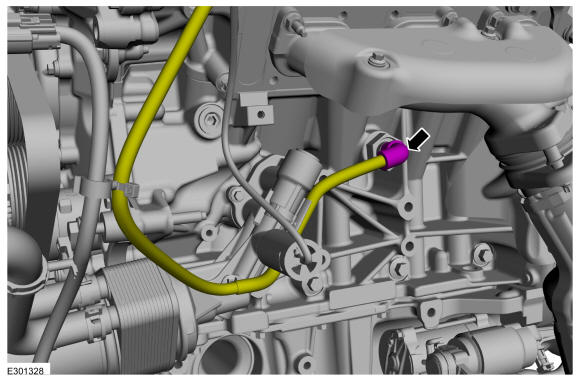

Disconnect the block heater electrical connector.

Courtesy of FORD MOTOR COMPANY

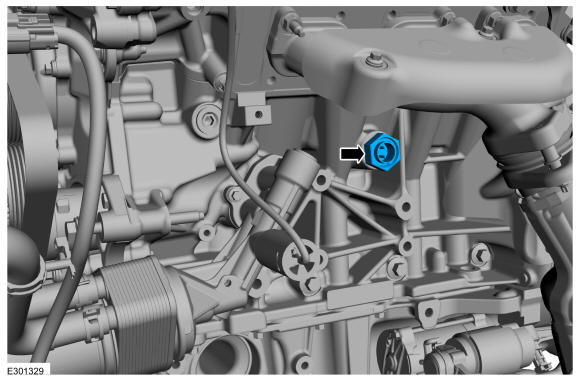

Remove the block heater.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
