Police Models
WARNING: This page is about a different variant/trim than selected.

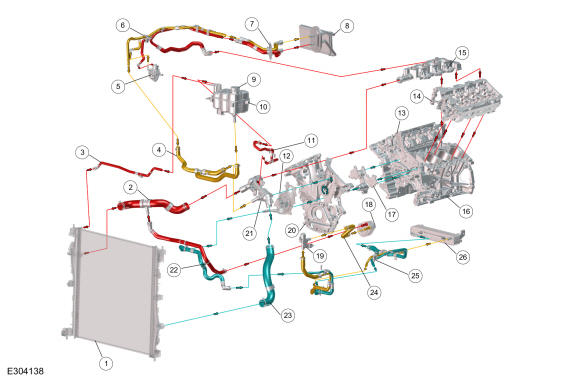

| Item | Description |
|---|---|
| 1 | Radiator |
| 2 | Upper radiator hose |
| 3 | Radiator-to-degas bottle hose |
| 4 | Degas bottle hose |
| 5 | EGR valve |
| 6 | Heater inlet hose |
| 7 | Heater outlet hose |
| 8 | Heater core |
| 9 | Pressure relief cap |
| 10 | Degas bottle |
| 11 | Degas bottle hose |
| 12 | Coolant pump |
| 13 | RH cylinder head |
| 14 | LH cylinder head |
| 15 | Intake manifold |
| 16 | Cylinder block |
| 17 | Channel cover plate |
| 18 | Engine oil cooler |
| 19 | Transmission coolant control valve |
| 20 | Engine front cover |
| 21 | Thermostat housing |
| 22 | Transmission oil cooler inlet hose |
| 23 | Lower radiator hose |
| 24 | Engine oil cooler inlet hose |
| 25 | Transmission oil cooler outlet hose |
| 26 | Transmission oil cooler |
