Transmission Fluid Heater Coolant Control Valve: Removal

WARNING: This page is about a different variant/trim than selected.
  1. GFD512967Courtesy of FORD MOTOR COMPANY
    GFD123035Courtesy of FORD MOTOR COMPANY
    WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.

    Loosen the pressure relief cap.

    GFD512967Courtesy of FORD MOTOR COMPANY

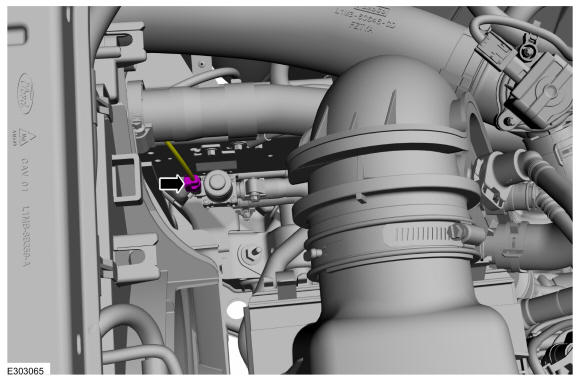

  2. Disconnect the coolant control valve electrical connector.
    GFD512968Courtesy of FORD MOTOR COMPANY

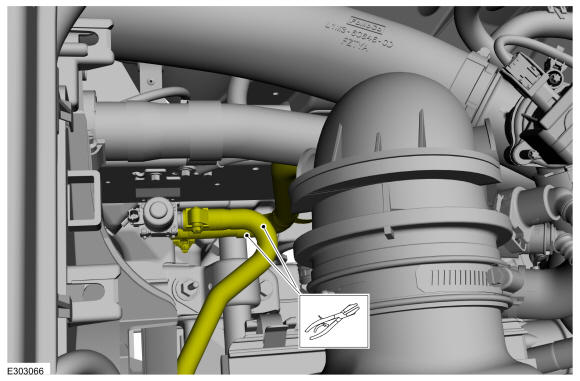

  3. Clamp off the coolant control valve hoses.
    GFD512969Courtesy of FORD MOTOR COMPANY

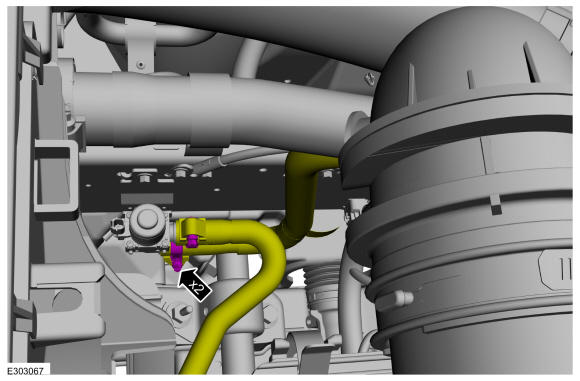

  4. Loosen the clamps and disconnect the coolant hoses.

    Torque

    : 44 lb.in (5 Nm)

    GFD512970Courtesy of FORD MOTOR COMPANY

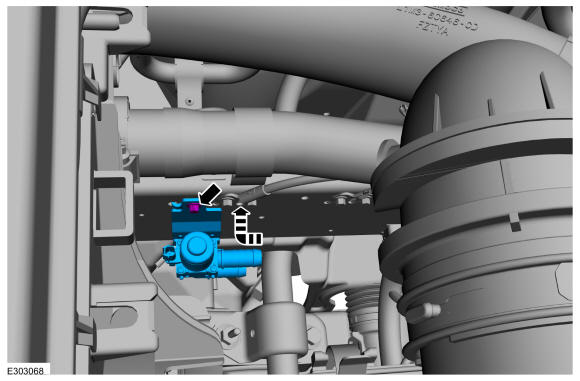

  5. Remove the bolt and the transmission fluid heater coolant control valve.

    Torque

    : 62 lb.in (7 Nm)

GFD512971Courtesy of FORD MOTOR COMPANY
