Removal And Installation: Thermostat: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the intake manifold. Refer to: Intake Manifold .

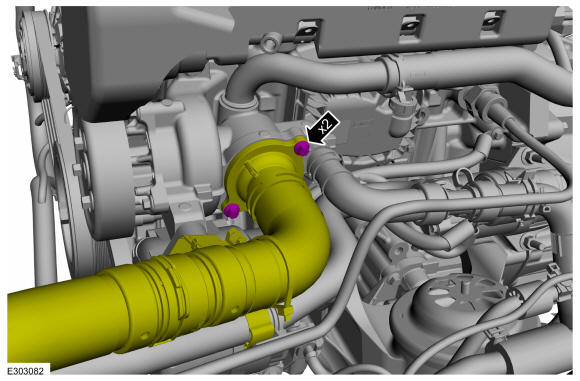

- Remove the bolts and position the coolant hose aside.
Torque
: 93 lb.in (10.5 Nm)
-

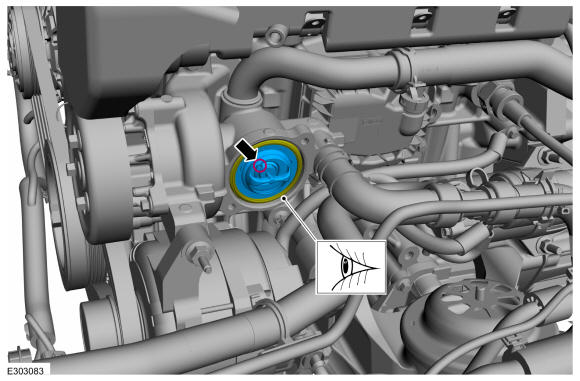

NOTE: During installation verify the thermostat vent hole is at the 11 o'clock position
Remove the thermostat. Inspect the O-ring seal and replace if necessary.
