Degas Bottle: Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
Always allow the engine to cool before opening the cooling system. Do not unscrew the coolant pressure relief cap when the engine is operating or the cooling system is hot. The cooling system is under pressure; steam and hot liquid can come out forcefully when the cap is loosened slightly. Failure to follow these instructions may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
- WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.
Release the cooling system pressure by slowly turning the degas bottle cap between 2 and 3 turns and remove the degas bottle cap.

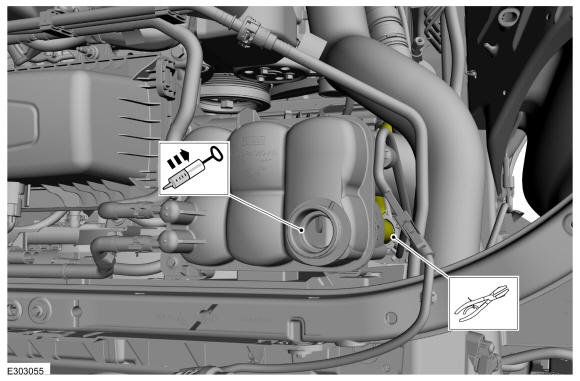

- Using general tools, clamp the lower expansion hose and syphon the engine coolant from the expansion tank. Use the General Equipment: Fluid Suction GunUse the General Equipment: Hose Clamp Remover/Installer
-

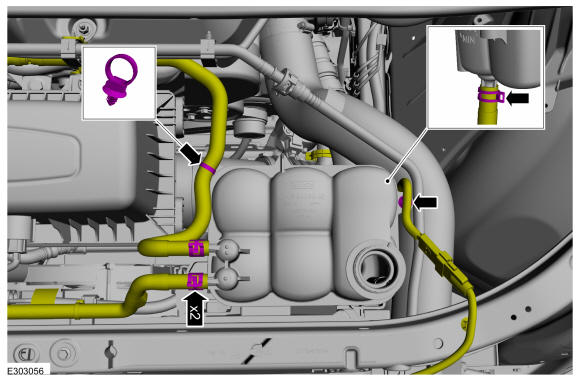

- Detach the electrical wiring harness retainer and coolant hose retainer.
- Release the clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

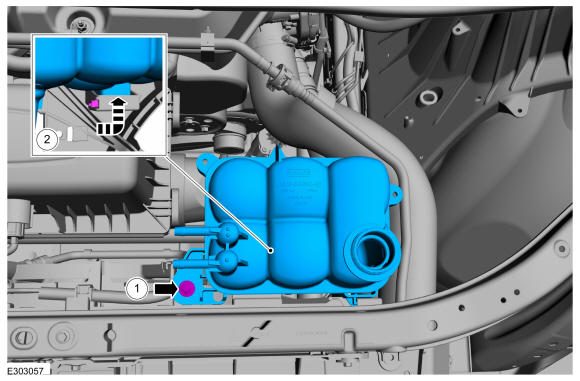

- Remove the bolts and the degas bottle.
Torque
: 44 lb.in (5 Nm)
