Cooling Module: Removal

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Evacuate the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant .
Remove the radiator grille opening panel. Refer to: Radiator Grille Opening Panel .
NOTE: Make sure that all openings are sealed.

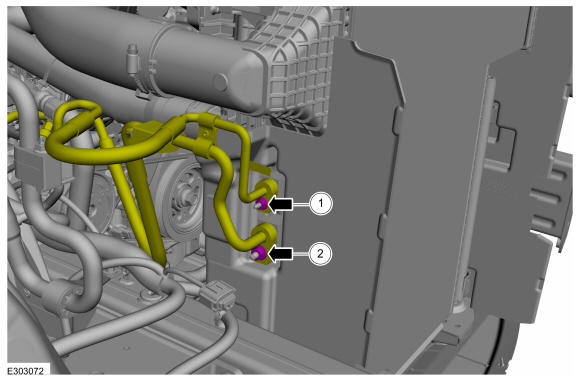

Remove the condenser inlet and outlet nuts and disconnect the fittings.

Torque

:Stage 1: 80 lb.in (9 Nm)Stage 2: 155 lb.in (17.5 Nm)

Courtesy of FORD MOTOR COMPANY
- Disconnect the quick release coupling.
- Loosen the clamp and position the upper radiator hose.
  Torque

  : 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY

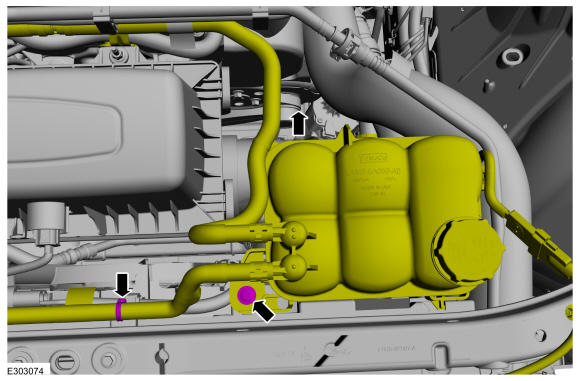

- Detach the coolant hose retainer.
- Remove the bolt and position the degas bottle aside.
  Torque

  : 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY

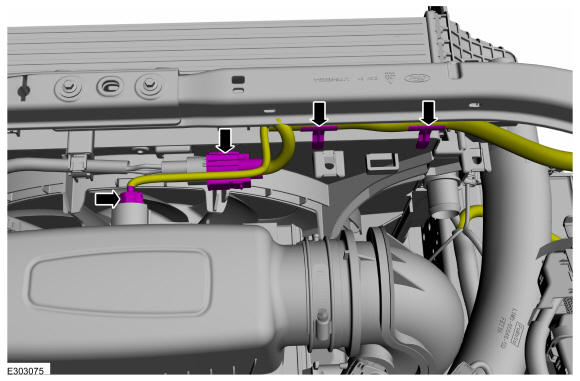

Disconnect the electrical connectors and detach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

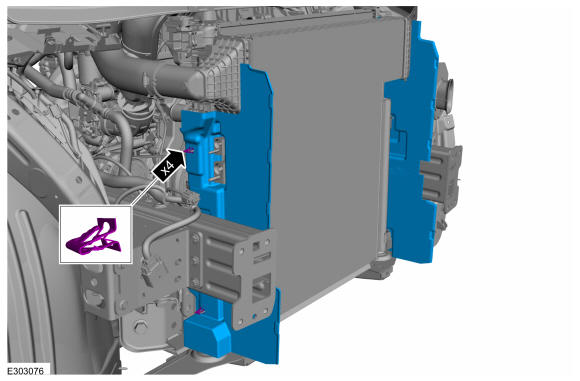

Release the clips and remove the radiator air deflector.

Courtesy of FORD MOTOR COMPANY

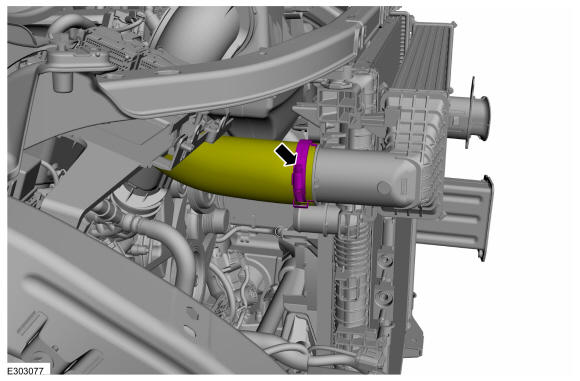

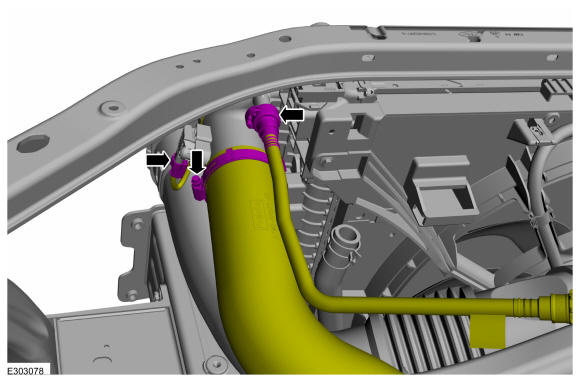

Loosen the clamp and position the CAC hose.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

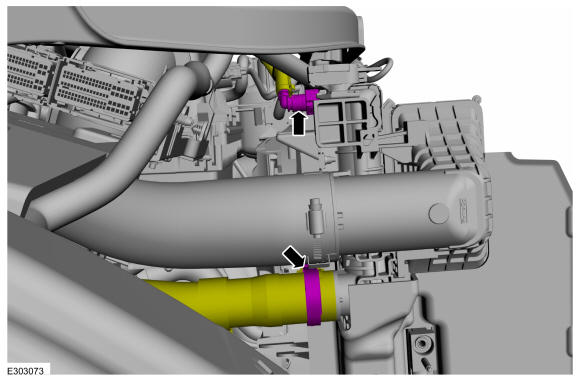

- Disconnect the MAP electrical connector.
- Release the quick connect coupling.
- Loosen the clamp and position the CAC hose.
  Torque

  : 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY

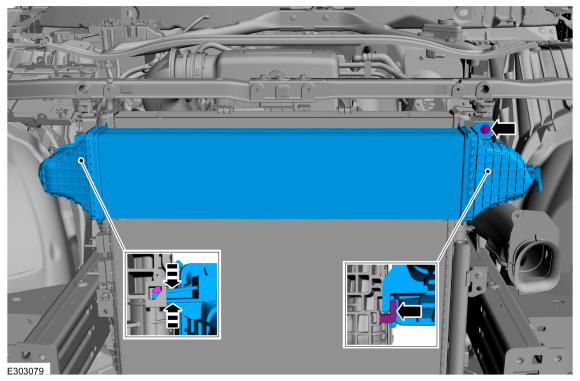

Release the tabs, remove the bolt and the CAC.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

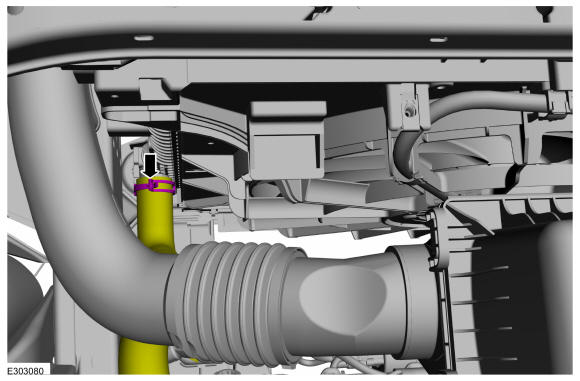

Release the clamp and disconnect the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

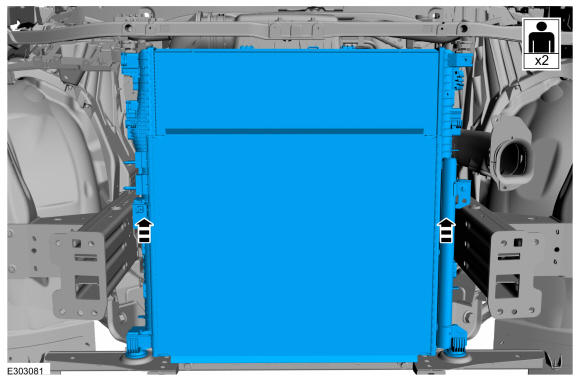

Remove the cooling module.
