Coolant Pump: Installation

WARNING: This page is about a different variant/trim than selected.

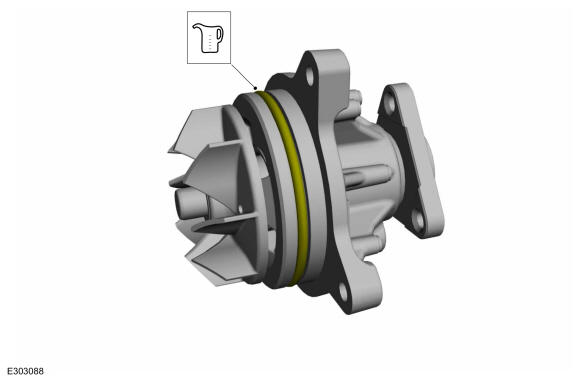

Lubricate the O-ring seal with clean engine coolant. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the mating faces are clean and free of foreign material.

Install the coolant pump and the bolts.

Torque

: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY

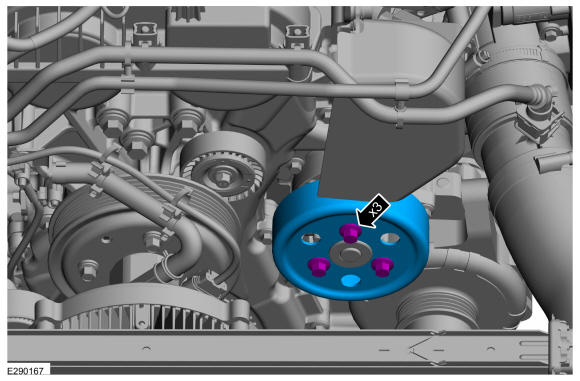

Position the coolant pump pulley and install the bolts finger tight.

Courtesy of FORD MOTOR COMPANY

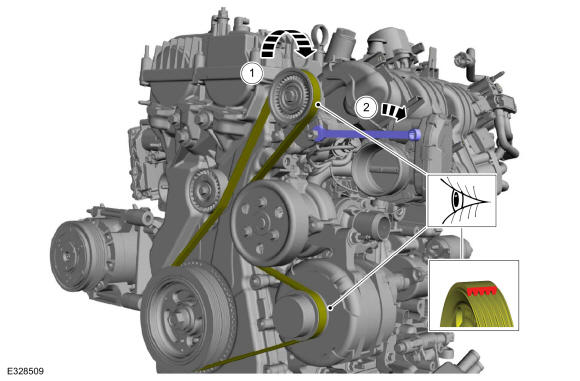

Remove the waterproof plastic from the A/C belt. Install the accessory drive belt.

Courtesy of FORD MOTOR COMPANY
Install the shield and the bolt (Enhanced Hexalobular or TORX PLUS ® Acument Intellectual Properties, LLC as the owner).
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the engine appearance cover and the stud nuts.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

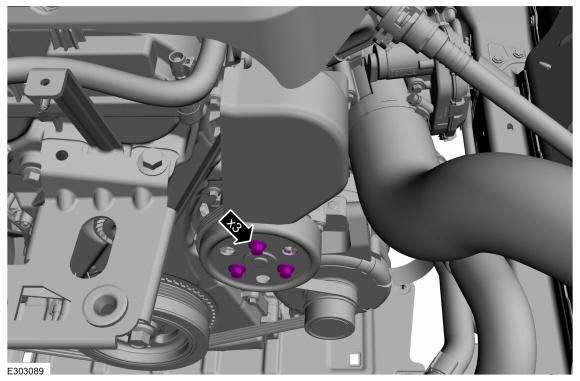

Tighten the coolant pump pulley bolts.
Torque

: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
- Position the degas bottle and install the bolt.
  Torque

  : 44 lb.in (5 Nm)
- Connect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
- Attach the coolant hose retainers.
Courtesy of FORD MOTOR COMPANY
Install the air cleaner. Refer to: Air Cleaner .
Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
