Block Heater: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the intake manifold. Refer to: Intake Manifold .

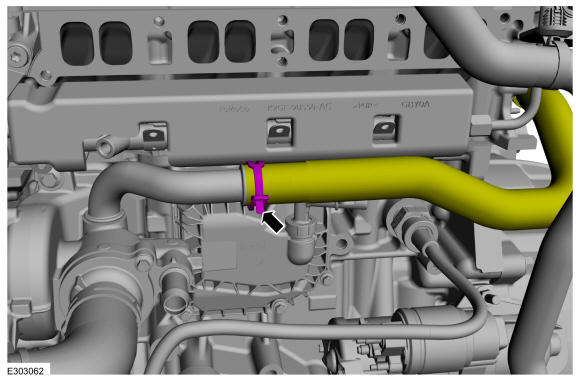

- Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
-
NOTE: Make sure the block heater wiring is routed and secured away from rotating or hot components.

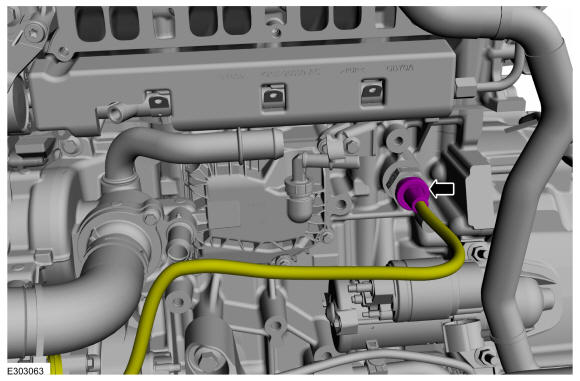

Disconnect the block heater electrical connector.

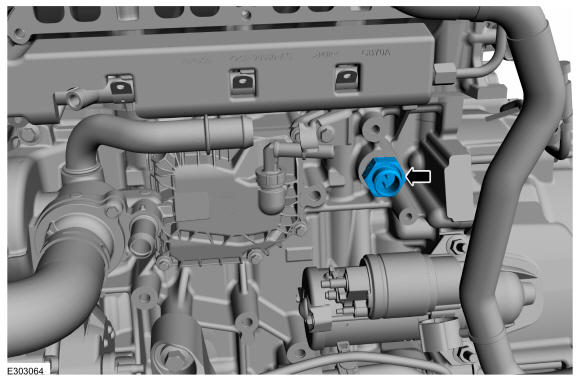

- Remove the block heater.
Torque
: 30 lb.ft (40 Nm)
