Ignition Coil-On-Plug: Removal
WARNING: This page is about a different variant/trim than selected.
Right side
NOTE:
The upper intake manifold must be removed to access the RH ignition coil-on-plugs. Right side
- Remove the upper intake manifold. Refer to: Upper Intake Manifold
.
Both sides
-
NOTE: Heater hoses not shown for clarity

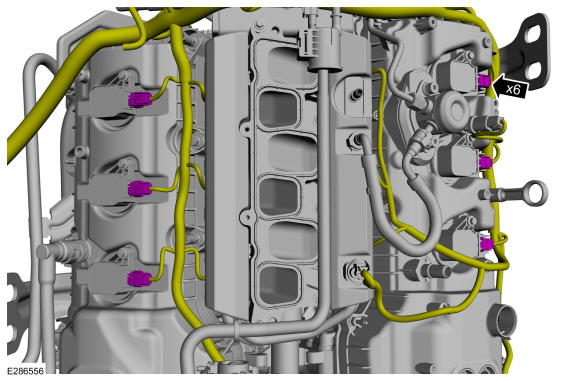

Disconnect the ignition coil-on-plug electrical connectors.
- Use compressed air to remove any foreign material in the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.
-
NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

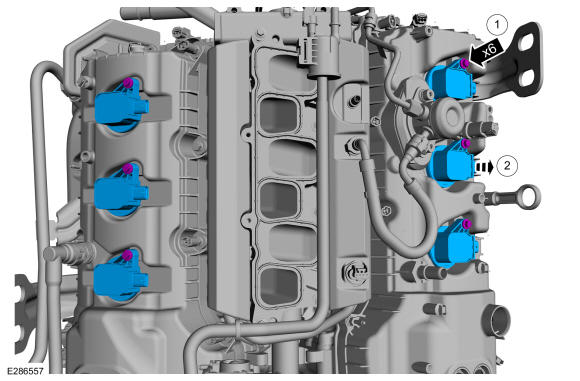

- Remove the ignition coil-on-plug bolts.
- Remove the ignition coil-on-plugs.
