Ignition Coil-On-Plug: Installation
WARNING: This page is about a different variant/trim than selected.

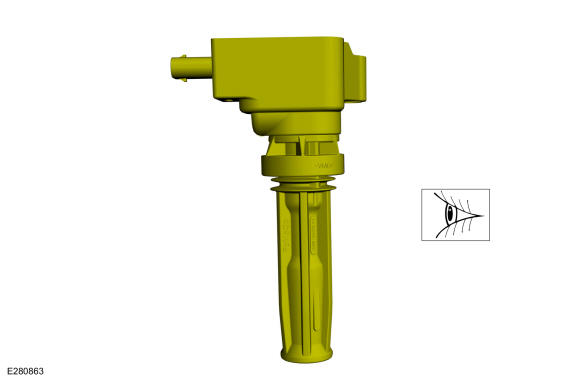

- Inspect the ignition coil-on-plug assembly for cracks, rips or tears. Replace any damaged ignition coil-on-plug assemblies.
- Install the ignition coil-on-plugs and the retainers.
Torque: 89 lb.in (10 Nm)
-
NOTE: If equipped with a sliding cover over the locking tab, slide the cover back to gain access to the tab.
- Connect the ignition coil-on-plug electrical connectors.
- Attach the wiring harness retainer.
- Attach the wiring harness retainers.
- Install the appearance cover and the nuts.
Torque: 89 lb.in (10 Nm)
