Transmission Fluid Heater Coolant Control Valve: Removal

WARNING: This page is about a different variant/trim than selected.
  1. GFD513034Courtesy of FORD MOTOR COMPANY
    GFD123035Courtesy of FORD MOTOR COMPANY
    WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.

    Loosen the pressure relief cap.

    GFD512980Courtesy of FORD MOTOR COMPANY

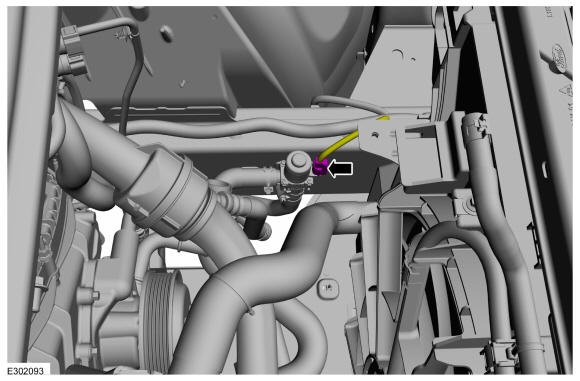

  2. Disconnect the coolant control valve electrical connector.
    GFD513035Courtesy of FORD MOTOR COMPANY
  3. Clamp off the coolant control valve hoses.
    GFD513034Courtesy of FORD MOTOR COMPANY

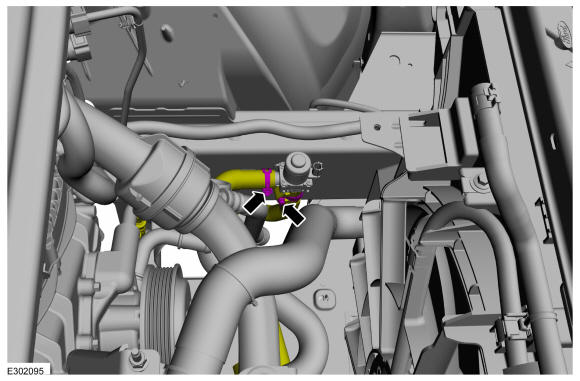

    • Loosen the clamp and disconnect the coolant hose.

    • Release the clamp and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

    GFD513036Courtesy of FORD MOTOR COMPANY

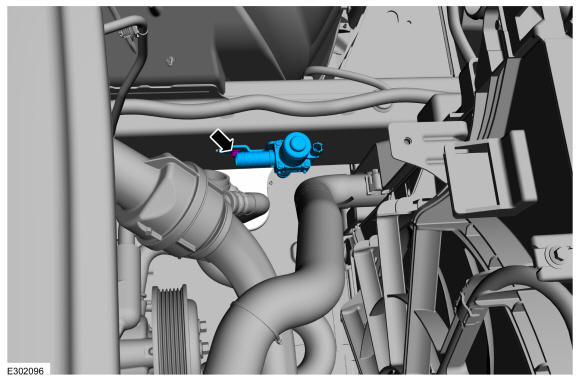

  5. Remove the bolt and the transmission fluid heater coolant control valve.

    Torque: 62 lb.in (7 Nm)

GFD513037Courtesy of FORD MOTOR COMPANY
