Coolant Pump: Removal
WARNING: This page is about a different variant/trim than selected.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the air cleaner. Refer to: Air Cleaner .
- Remove the CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .

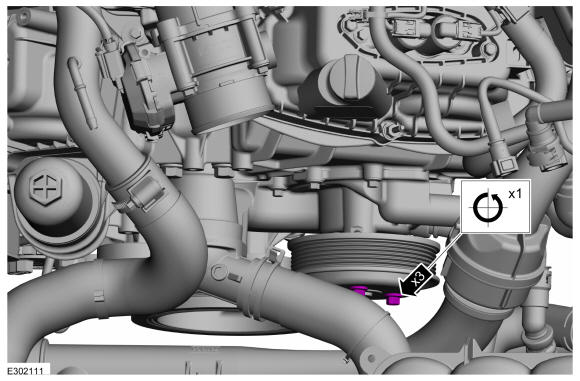

- Loosen the coolant pump pulley bolts.
- Remove the accessory drive belt. Refer to: Accessory Drive Belt
.NOTE: Completely remove the accessory drive belt to prevent coolant contamination.
- Remove the bolts and the coolant pump pulley.
- Remove the thermostat. Refer to: Thermostat .
- Remove the bolt and the idler pulley.
-
- Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
- Disconnect the coolant hose quick release coupling.
-
NOTE: Use caution to prevent damaging the coolant inlet pipe grommet.

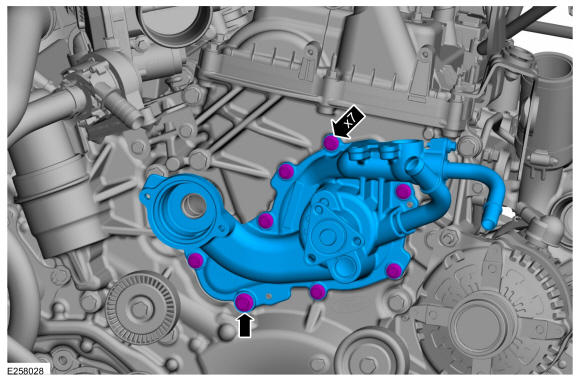

Remove the bolts and the coolant pump.

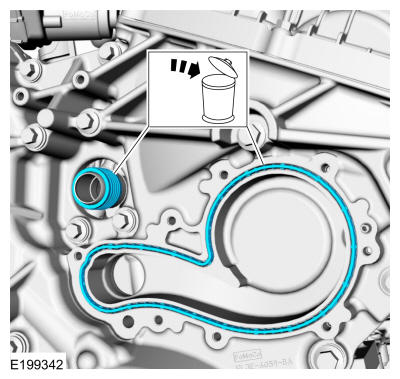

- Remove and discard the coolant pump gasket and seal.
