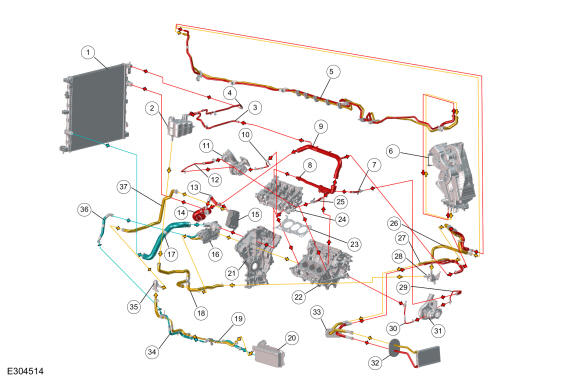

| Item | Description |
|---|---|
| 1 | Radiator |
| 2 | Degas bottle |
| 3 | Engine-to-degas bottle hose |
| 4 | Radiator-to-degas bottle hose |
| 5 | Heater hose assembly |
| 6 | A/C assembly |
| 7 | Cylinder head to coolant outlet connector hose RH |
| 8 | Coolant outlet connector hose |
| 9 | Coolant outlet connector |
| 10 | Turbocharger inlet tube LH |
| 11 | Turbocharger LH |
| 12 | Turbocharger outlet tube LH |
| 13 | Engine oil cooler outlet hose |
| 14 | Upper radiator hose |
| 15 | Engine oil cooler |
| 16 | Coolant pump |
| 17 | Lower radiator hose |
| 18 | Degas bottle hose |
| 19 | Engine oil cooler |
| 20 | Transmission oil cooler |
| 21 | Engine front cover |
| 22 | Cylinder block |
| 23 | Cylinder head gasket |
| 24 | Cylinder head LH |
| 25 | Cylinder head to coolant outlet connector hose LH |
| 26 | Auxiliary pump outlet hose |
| 27 | Auxiliary pump inlet hose |
| 28 | Auxiliary pump |
| 29 | Turbocharger outlet tube RH |
| 30 | Turbocharger inlet tube RH |
| 31 | Turbocharger RH |
| 32 | Evaporator |
| 33 | Heater hose assembly |
| 34 | Transmission oil cooler inlet hose |
| 35 | Transmission coolant control valve |
| 36 | Coolant pump outlet hose |
| 37 | Engine oil cooler inlet hose |
