Upshift Paddle Switch: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Remove the steering wheel. Refer to: Steering Wheel .
Remove the bolts and the steering wheel rear cover.

Courtesy of FORD MOTOR COMPANY
On both sides. Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the steering wheel bezel.

Courtesy of FORD MOTOR COMPANY

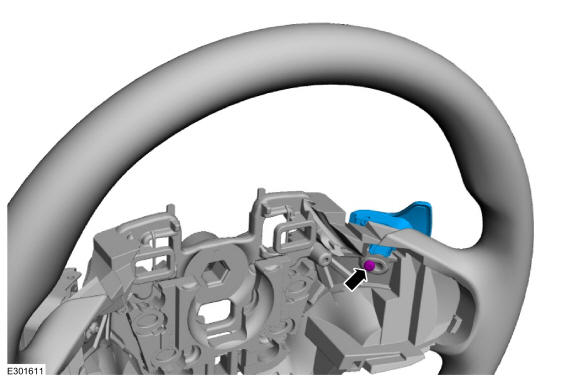

Remove the bolt and the upshift paddle switch.

Courtesy of FORD MOTOR COMPANY
