Gear Shift Module (GSM): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: Move the front seats forward and rearward as necessary to access floor console components.

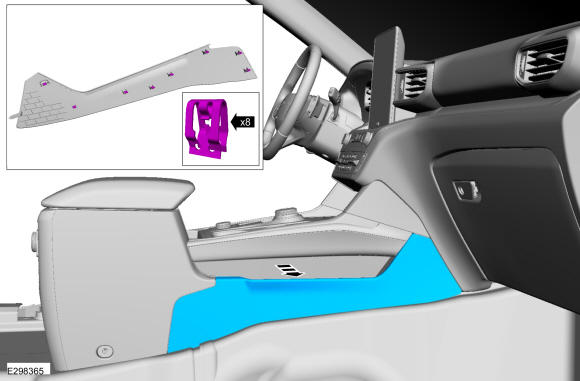

  1. Release the clips and remove the RH floor console side trim panel.
    GFD515155Courtesy of FORD MOTOR COMPANY

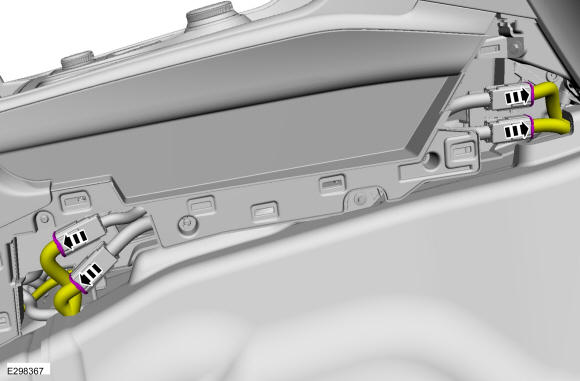

  2. Disconnect the RH floor console electrical connectors.
    GFD515156Courtesy of FORD MOTOR COMPANY

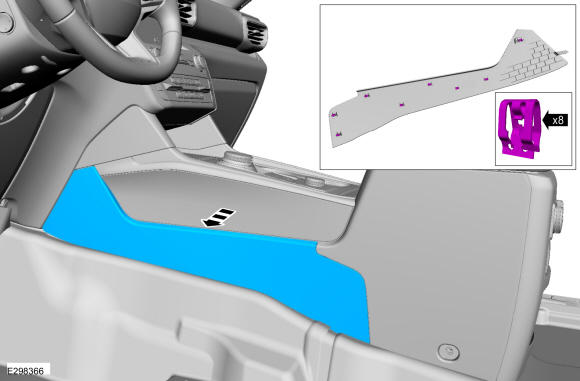

  3. Release the clips and remove the LH floor console side trim panel.
    GFD515157Courtesy of FORD MOTOR COMPANY

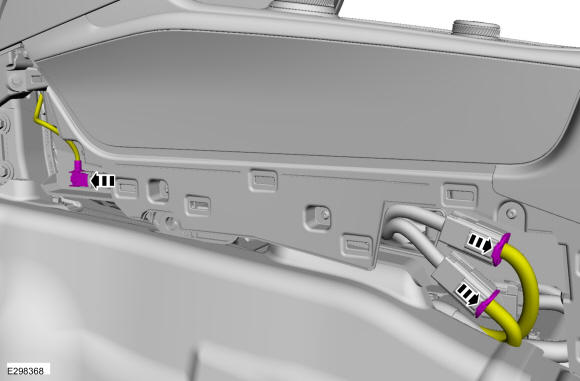

  4. Disconnect the LH floor console electrical connectors.
    GFD515158Courtesy of FORD MOTOR COMPANY

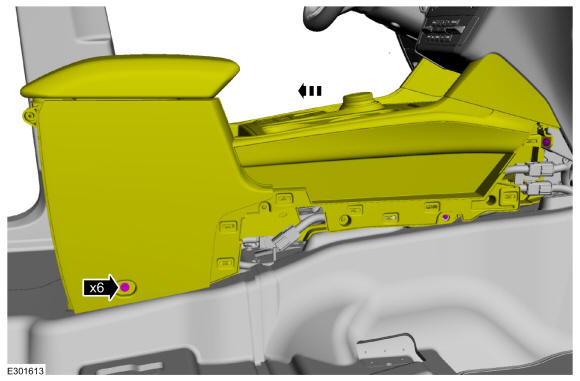

  5. Remove the bolts and position the floor console rearward.
    GFD515159Courtesy of FORD MOTOR COMPANY

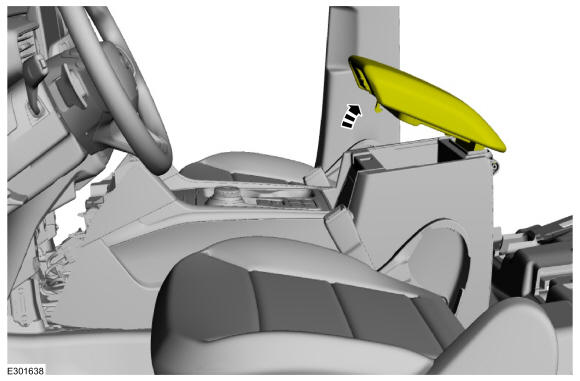

  6. Open the console door.
    GFD515160Courtesy of FORD MOTOR COMPANY

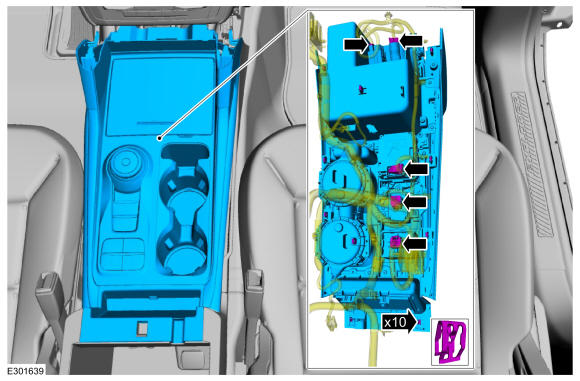

  7. Release the clips, detach the console top panel, disconnect the electrical connectors and remove the console top panel.
    GFD515161Courtesy of FORD MOTOR COMPANY

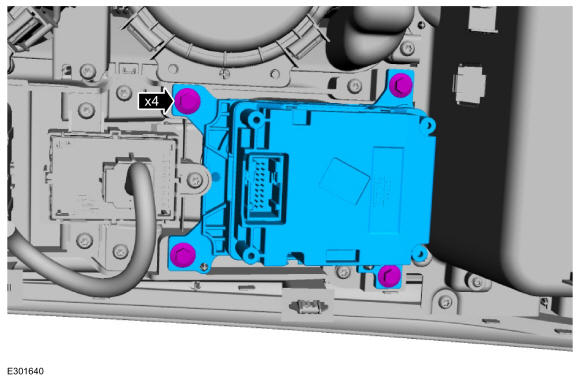

  8. Remove the bolts and the GSM.
GFD515162Courtesy of FORD MOTOR COMPANY
