Stay in Neutral

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Activation

  1. NOTE: If the vehicle has a discharged battery, an external power source is required. If the battery discharges while in Stay in Neutral Mode, the park lock pawl solenoid will release and the transmission will return to Park. Do not tow the vehicle in this mode.

    Apply the parking brake.

    GFD515142Courtesy of FORD MOTOR COMPANY

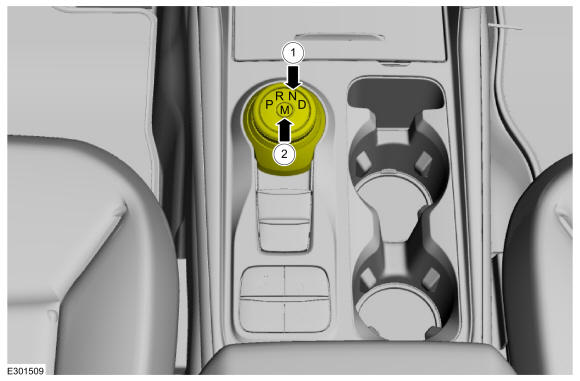

  2. Rotate the GSM dial to N, then press the M button within 5 seconds to enter Stay in Neutral Mode. N on the GSM will slowly blink and a message will appear on the IPC.
    GFD515143Courtesy of FORD MOTOR COMPANY
  3. To exit Stay in Neutral Mode, press the brake pedal and shift to P, or if the engine is running press the brake pedal and shift to any other gear.
