Fuel Lines: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery. Refer to Battery Disconnect And Connect .
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .

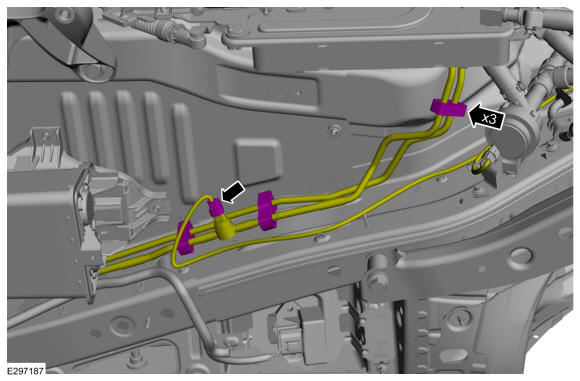

- Remove the quick release couplings and detach the retainer clip. Refer to: QUICK RELEASE COUPLING - 3.0L
.

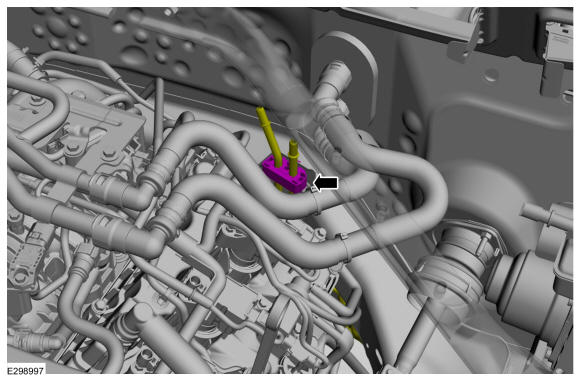

- Detach the retainer clip.
- Remove the fasteners and Heat shield.
Torque: 89 lb.in (10 Nm)
- Remove the retainer clips and disconnect the electrical connector.

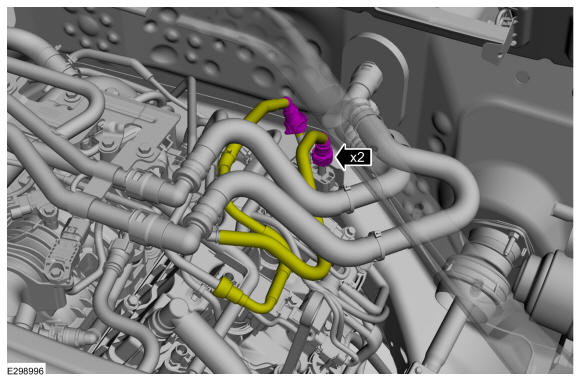

- Remove the quick release couplings and detach the retainer clips. Refer to: QUICK RELEASE COUPLING - 3.0L .
