Transmission Fluid Pump: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the main control valve body. Refer to: Main Control Valve Body .

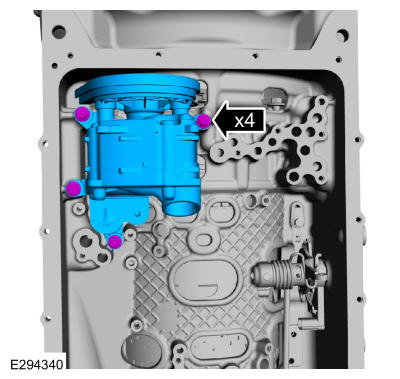

  2. Remove the bolts and the transmission fluid pump.
GFD514359Courtesy of FORD MOTOR COMPANY
