Transmission Fluid Pump Idler Gear: Removal

WARNING: This page is about a different variant/trim than selected.
  1. To remove the transmission assembly. Refer to: Transmission .
  2. Using the special tool, install the transmission on a bench. Use Special Service Tool: 307-003 (T57L-500-B) Holding Fixture, Transmission.
    GFD514117Courtesy of FORD MOTOR COMPANY
  3. Remove the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
    GFD514118Courtesy of FORD MOTOR COMPANY
  4. Using the special tool, remove the torque converter. Use Special Service Tool: 307-091 Handle, Torque Converter.
    GFD514119Courtesy of FORD MOTOR COMPANY
  5. NOTE: Note the location of the bolts and studbolts for assembly.

    Remove the studbolts and bolts and the transmission fluid pan.

    1. Studbolts
    2. Bolts

    GFD514121Courtesy of FORD MOTOR COMPANY
  6. NOTE: The transmission fluid pan gasket can be reused if not damaged.
    NOTE: Note the location of the alignment tabs.

    Remove the transmission fluid pan gasket.

    GFD514122Courtesy of FORD MOTOR COMPANY
  7. Remove the transmission fluid level indicator and plug assembly.
    GFD514123Courtesy of FORD MOTOR COMPANY

    Auto-Start-Stop vehicles

  8. Remove the bolt and the transmission fluid auxiliary pump tube.
    GFD514124Courtesy of FORD MOTOR COMPANY
  9. Remove and discard the transmission fluid auxiliary pump tube seal.
    GFD514125Courtesy of FORD MOTOR COMPANY
  10. Disconnect the transmission fluid auxiliary pump electrical connector.
    GFD514126Courtesy of FORD MOTOR COMPANY
  11. Remove the bolts and the transmission fluid auxiliary pump.
    GFD514127Courtesy of FORD MOTOR COMPANY

    All vehicles

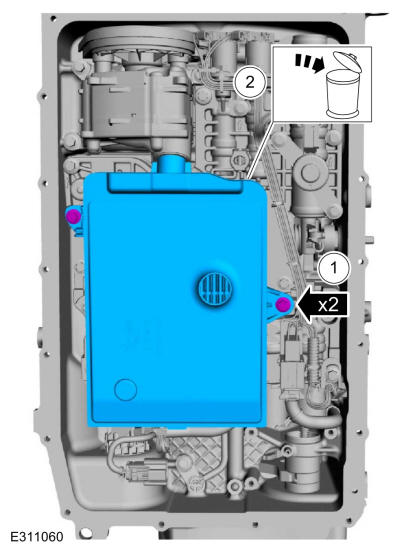

    1. Remove the 71 mm and 20 mm bolts.
    2. Remove and discard the transmission fluid filter (7A098).
    GFD514364Courtesy of FORD MOTOR COMPANY

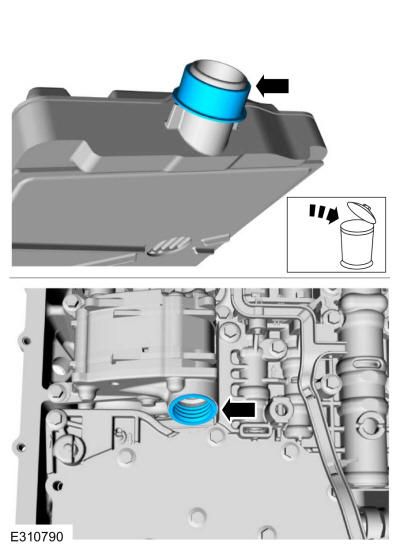

  13. NOTE: The transmission fluid filter seal will either come off with the transmission fluid filter or it will be stuck in the pump.

    Remove and discard the transmission fluid filter seal (7Z302).

    GFD514365Courtesy of FORD MOTOR COMPANY
  14. Disconnect the main control main electrical connector.
    GFD514130Courtesy of FORD MOTOR COMPANY
  15. Remove the nut and the park override lever.
    GFD514131Courtesy of FORD MOTOR COMPANY
  16. Rotate the manual shaft to the park override position.
    GFD514132Courtesy of FORD MOTOR COMPANY
    1. Remove the 68 mm bolts and the main control assembly.
    2. Check to see if the main control-to-transmission fluid pump seal is attached to the main control.
    GFD514133Courtesy of FORD MOTOR COMPANY
  18. Remove the bolts and the transmission fluid pump.
    GFD514136Courtesy of FORD MOTOR COMPANY

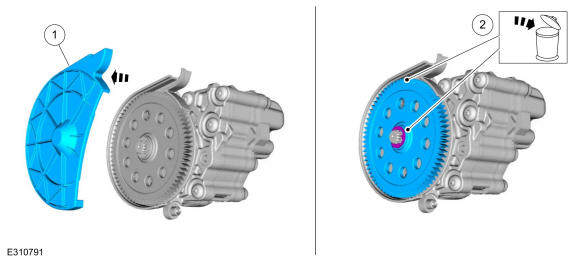

    1. Remove the transmission fluid pump driven gear outer cover.
    2. Remove and discard the retaining ring (W718158) and the transmission fluid pump driven gear (7J048).
    GFD514366Courtesy of FORD MOTOR COMPANY

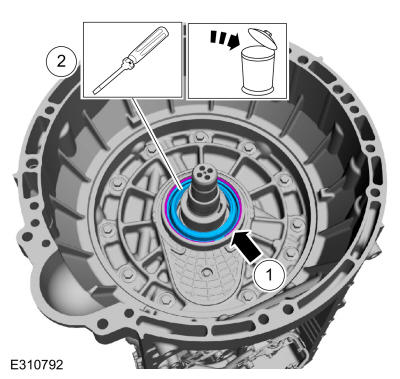

    1. Remove the torque converter hub seal snap ring.
    2. NOTE: When removing the torque converter hub seal use care not to scratch the front support cover sealing surface.

      Remove and discard the torque converter hub seal (7A248).

    GFD514367Courtesy of FORD MOTOR COMPANY
  21. Remove the front support cover bolt and the front support cover snap ring.
    GFD514368Courtesy of FORD MOTOR COMPANY

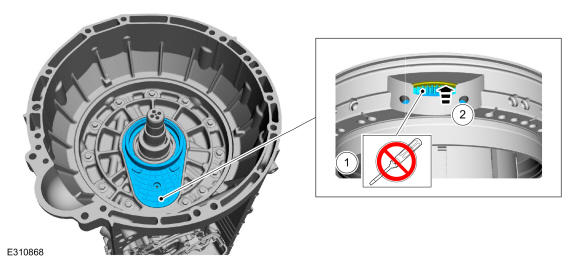

    1. NOTE: Do not pry on the transmission fluid pump drive gear to remove the front support cover or damage to the transmission fluid pump drive gear can occur.
    2. Push up on the back of the front support cover and remove the front support cover from the front support.
    GFD514369Courtesy of FORD MOTOR COMPANY

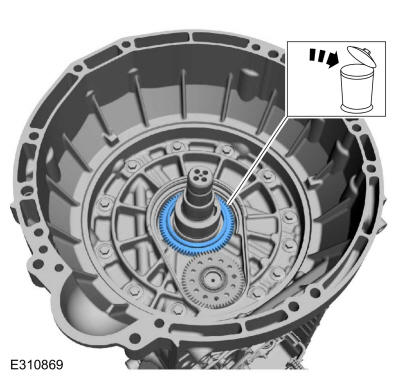

  23. Remove and discard the transmission fluid pump drive gear (7177).
    GFD514370Courtesy of FORD MOTOR COMPANY

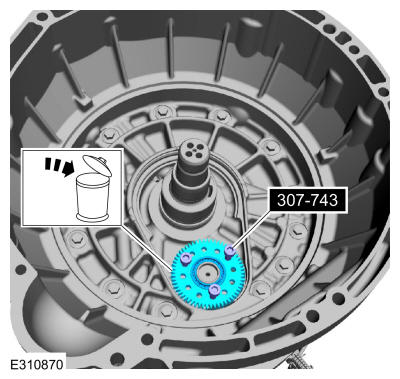

  24. NOTE: Tighten the special tools evenly to remove the transmission fluid pump idler gear.

    Using the special tools, remove and discard the transmission fluid pump idler gear (6652) and bearing (7025). Use Special Service Tool: 307-743 Remover, Pump Drive Gear.

    GFD514371Courtesy of FORD MOTOR COMPANY

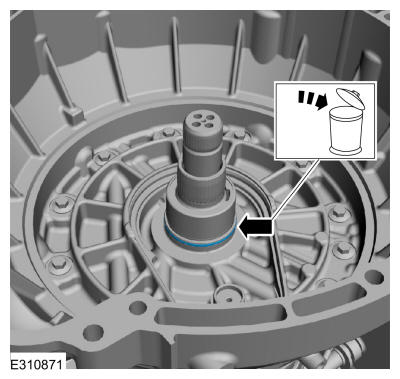

  25. Remove and discard the stator support seal (7G090).
    GFD514372Courtesy of FORD MOTOR COMPANY

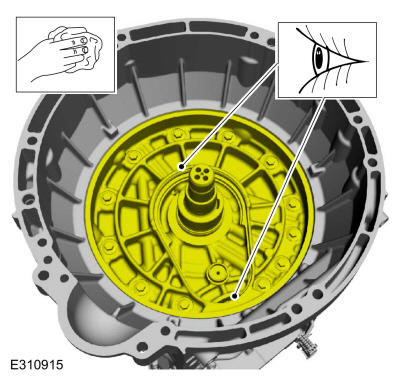

  26. Clean all debris from the front support.
GFD514373Courtesy of FORD MOTOR COMPANY
