Transmission Fluid Auxiliary Pump: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: It is not necessary to remove the transmission fluid filter to remove the transmission fluid auxiliary pump.

Remove the transmission fluid pan and gasket. Refer to: Transmission Fluid Pan, Gasket and Filter .

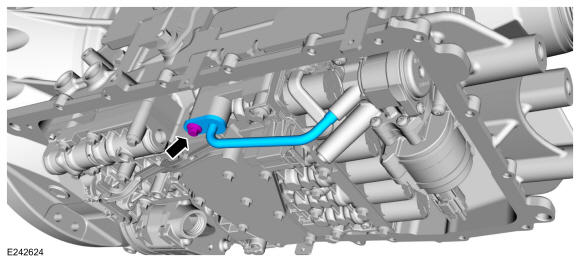

Remove the bolt and the transmission fluid auxiliary pump tube.

Courtesy of FORD MOTOR COMPANY

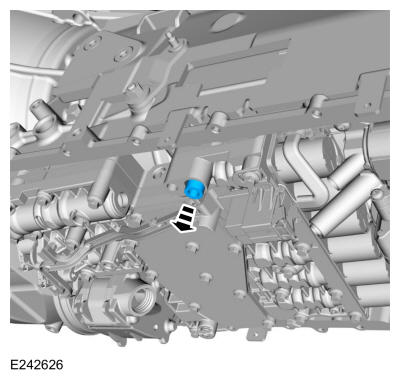

Remove the transmission fluid auxiliary pump tube seal.

Courtesy of FORD MOTOR COMPANY

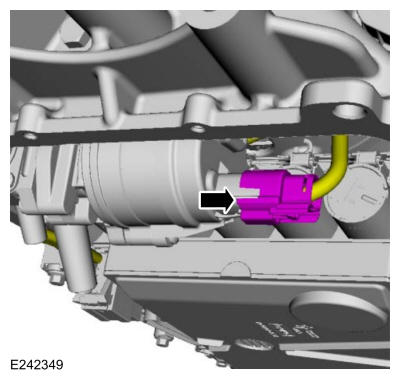

Disconnect the transmission fluid auxiliary pump.

Courtesy of FORD MOTOR COMPANY
NOTE: A short 1/4" drive T-30 socket is required to remove the rear pump bolt.

NOTE: The fluid auxiliary pump may need to be removed from the RH side of the vehicle to clear the exhaust system and fluid filter.

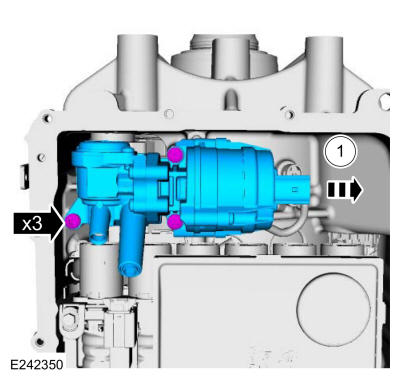

Remove the bolts and the transmission fluid auxiliary pump.
1. If necessary, remove the fluid auxiliary pump towards the RH side.

Courtesy of FORD MOTOR COMPANY
