Transmission Fluid Auxiliary Pump: Installation

WARNING: This page is about a different variant/trim than selected.

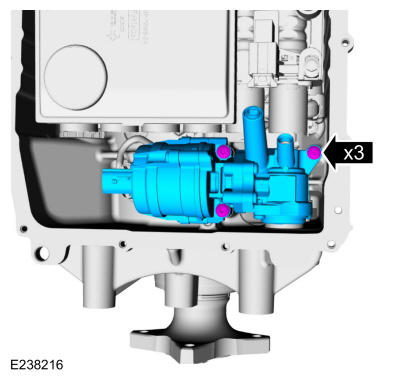

  1. Install the transmission fluid auxiliary pump and loosely install the bolts.
    GFD514347Courtesy of FORD MOTOR COMPANY

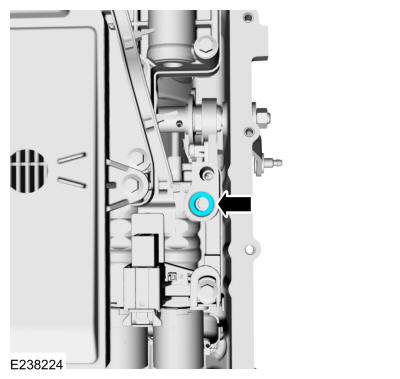

  2. Install the transmission fluid auxiliary pump tube seal.
    GFD514348Courtesy of FORD MOTOR COMPANY
  3. Inspect the transmission fluid auxiliary pump tube O-ring.
    GFD514222Courtesy of FORD MOTOR COMPANY

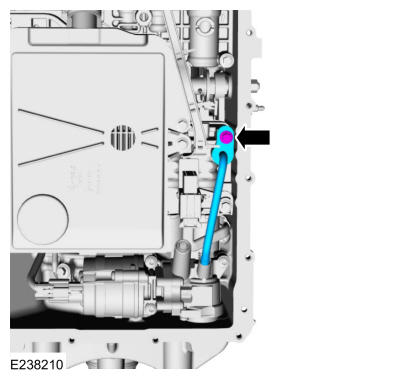

  4. Install the transmission fluid auxiliary pump tube and loosely install the bolt.
    GFD514349Courtesy of FORD MOTOR COMPANY

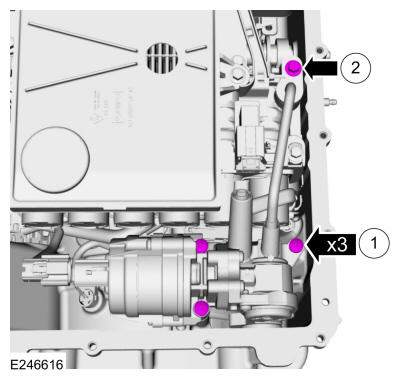

    1. Transmission fluid auxiliary pump bolts

      Torque: 97 lb.in (11 Nm)

    2. Transmission fluid auxiliary pump tube bolt

      Torque: 106 lb.in (12 Nm)

    GFD514350Courtesy of FORD MOTOR COMPANY

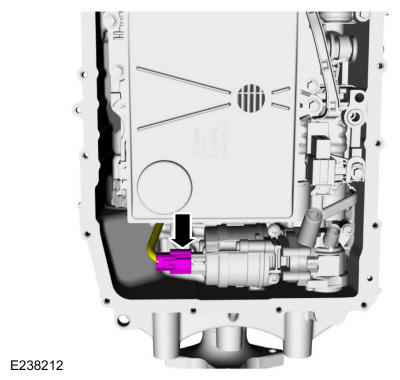

  6. Connect the transmission fluid auxiliary pump electrical connector.
    GFD514351Courtesy of FORD MOTOR COMPANY
  7. Install the transmission fluid pan and gasket. Refer to: Transmission Fluid Pan, Gasket and Filter .
