Transmission - 3.0L EcoBoost: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
    1. Remove pin-type retainer.
    2. Remove the bolts and the underbody shield.
    GFD514281Courtesy of FORD MOTOR COMPANY
  3. Remove the bolts.
    GFD514282Courtesy of FORD MOTOR COMPANY
    • Remove the retainers.

    • Remove the push pins and the engine rear shield.

    GFD514283Courtesy of FORD MOTOR COMPANY
  5. Remove the starter motor. Refer to: Starter Motor .
  6. Remove the starter motor insulator.
    GFD514295Courtesy of FORD MOTOR COMPANY
  7. Remove the retainers and the heatshield.
    GFD514284Courtesy of FORD MOTOR COMPANY
  8. NOTE: If transmission disassembly or installation of a new transmission is necessary, drain the transmission fluid.
    NOTE: Note the location of the bolts and studbolts for assembly.

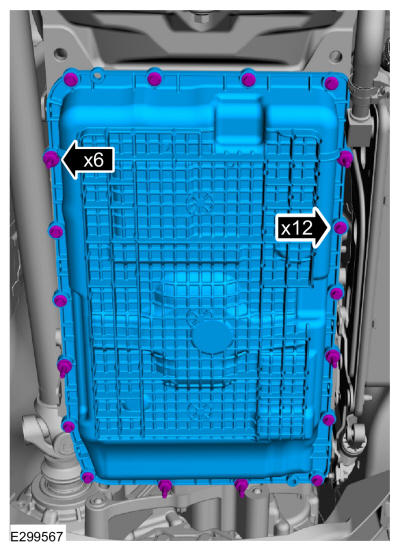

    Remove the bolts, studbolts and the transmission fluid pan.

    GFD514285Courtesy of FORD MOTOR COMPANY
  9. NOTE: It is not necessary to torque transmission fluid pan bolts at this time.

    Install the transmission fluid pan and the bolts.

    GFD514285Courtesy of FORD MOTOR COMPANY
  10. NOTE: If equipped.

    Remove the bolt.

    GFD514093Courtesy of FORD MOTOR COMPANY

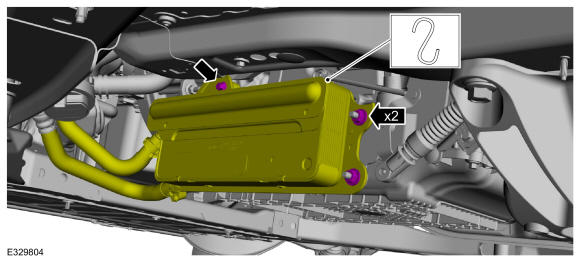

  11. Remove the bolt, nuts and position aside the transmission fluid cooler.
    GFD514315Courtesy of FORD MOTOR COMPANY

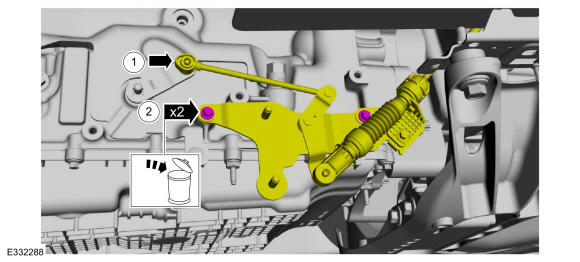

  12. Position aside the park manual release cable.

    1. Disconnect the rod from the manual control lever.
    2. Remove and discard the bolts and position aside the cable assembly.

    GFD514286Courtesy of FORD MOTOR COMPANY

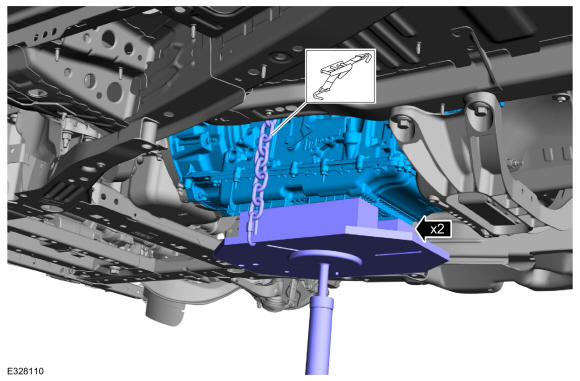

  13. NOTE: Secure the transmission to the transmission jack with a safety strap.

    Using a high-lift transmission jack and wooden blocks, support the transmission. Use the General Equipment: Transmission Jack, Use the General Equipment: Wooden Block

    GFD514288Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

  14. Remove the transfer case. Refer to: Transfer Case .

    Rear Wheel Drive (RWD) vehicles

  15. NOTE: Take extra care not to damage the component.

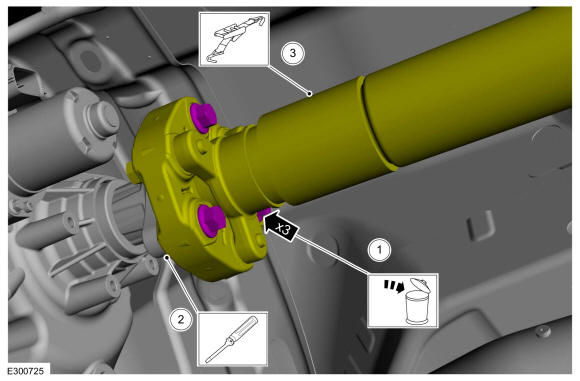

    Position and support the driveshaft aside.

    1. Mark the driveshaft flex coupling to the transmission flange.
    2. Remove and discard the driveshaft flex coupling to transmission flange bolts.
    3. Separate the flex coupling from the transfer case / transmission flange.

    GFD514289Courtesy of FORD MOTOR COMPANY
  16. Remove the transmission support insulator. Refer to: Transmission Support Insulator .

    All vehicles

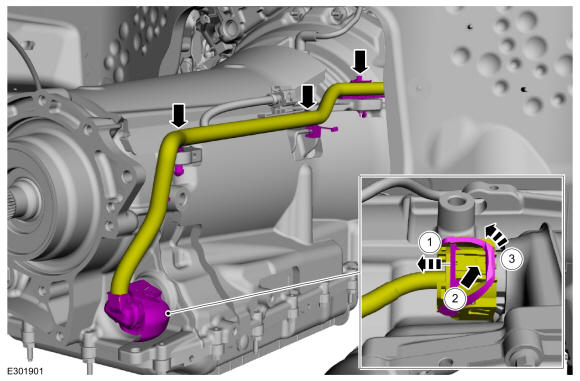

  17. NOTE: Do not pull on the wire harness to disconnect/connect the connector or damage to the connector/wire harness will occur.

    Disconnect the electrical connector, wiring harness retainers and position aside the wiring harness.

    1. Slide the safety lock out.
    2. Press the connector tab in.
    3. Rotate the locking arm up and disconnect the transmission electrical connector.

    GFD514316Courtesy of FORD MOTOR COMPANY

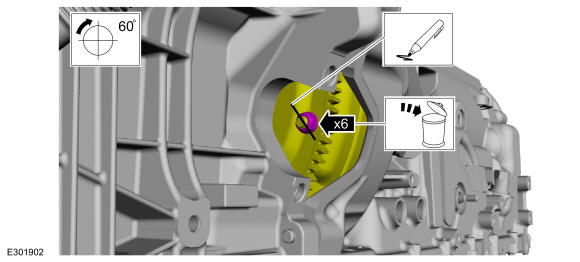

  18. NOTE: Only rotate the crankshaft in a clockwise direction.
    NOTE: Index mark one stud and the flexplate for assembly reference.

    Using a magnetic socket, remove and discard the torque converter nuts. Use the General Equipment: Magnetic Socket

    GFD514317Courtesy of FORD MOTOR COMPANY
  19. Disconnect the transmission vent tube.
    GFD514318Courtesy of FORD MOTOR COMPANY
  20. Remove the LH bellhousing bolt and studbolts.
    GFD514319Courtesy of FORD MOTOR COMPANY
  21. Remove the upper bellhousing bolts.
    GFD514320Courtesy of FORD MOTOR COMPANY
  22. Remove the RH bellhousing bolts.
    GFD514321Courtesy of FORD MOTOR COMPANY
  23. Slide the transmission back enough to install the special tool and remove the transmission from the vehicle. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
    GFD514322Courtesy of FORD MOTOR COMPANY

    Rear Wheel Drive (RWD) vehicles

  24. NOTE: If installing a new or re-manufactured transmission, remove the transmission support bracket.

    If necessary, remove the bolts and the transmission support bracket.

    GFD514303Courtesy of FORD MOTOR COMPANY

    All vehicles

  25. NOTE: Failure to clean the transmission fluid cooler tubes can result in transmission failure.

    If the transmission is to be overhauled or if installing a new or re-manufactured transmission, carry out the transmission fluid cooler backflushing and cleaning procedure. Refer to: Transmission Fluid Cooler - Backflushing and Cleaning .
