Transmission - 2.3L EcoBoost (201kW/273PS): Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Disconnect the battery ground. Refer to: Battery Disconnect And Connect .
  3. Remove the HO2S from the catalytic converter. Refer to: Heated Oxygen Sensor (HO2S) .
    1. Remove pin-type retainer.
    2. Remove the bolts and the underbody shield.
    GFD514281Courtesy of FORD MOTOR COMPANY
  5. Remove the bolts.
    GFD514282Courtesy of FORD MOTOR COMPANY
    • Remove the retainers.

    • Remove the push pins and the engine rear shield.

    GFD514283Courtesy of FORD MOTOR COMPANY
  7. Remove the retainers and the heatshield.
    GFD514284Courtesy of FORD MOTOR COMPANY
  8. NOTE: If transmission disassembly or installation of a new transmission is necessary, drain the transmission fluid.
    NOTE: Note the location of the bolts and studbolts for assembly.

    Remove the bolts, studbolts and the transmission fluid pan.

    GFD514285Courtesy of FORD MOTOR COMPANY
  9. NOTE: It is not necessary to torque transmission fluid pan bolts at this time.

    Install the transmission fluid pan and the bolts.

    GFD514285Courtesy of FORD MOTOR COMPANY
  10. NOTE: If equipped.

    Remove the bolt.

    GFD514093Courtesy of FORD MOTOR COMPANY
  11. Remove the bolt, nuts and position aside the transmission fluid cooler.
    GFD514094Courtesy of FORD MOTOR COMPANY
  12. Position aside the park manual release cable.

    1. Disconnect the rod from the manual control lever.
    2. Remove and discard the bolts and position aside the cable assembly.

    GFD514286Courtesy of FORD MOTOR COMPANY
  13. Support the front of the engine with a jack stand and block of wood. Use the General Equipment: Vehicle/Axle Stands Use the General Equipment: Wooden Block
    GFD514287Courtesy of FORD MOTOR COMPANY
  14. NOTE: Secure the transmission to the transmission jack with a safety strap.

    Using a high-lift transmission jack and wooden blocks, support the transmission. Use the General Equipment: Transmission Jack, Use the General Equipment: Wooden Block

    GFD514288Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

  15. Remove the front driveshaft assembly. Refer to: Front Driveshaft .

    Rear Wheel Drive (RWD) vehicles

  16. NOTE: Take extra care not to damage the component.

    Position and support the driveshaft aside.

    1. Mark the driveshaft flex coupling to the transmission flange.
    2. Remove and discard the driveshaft flex coupling to transmission flange bolts.
    3. Separate the flex coupling from the transfer case / transmission flange.

    GFD514289Courtesy of FORD MOTOR COMPANY
  17. Remove the transmission support insulator. Refer to: Transmission Support Insulator .

    All vehicles

  18. Remove the catalytic converter. Refer to: Catalytic Converter .

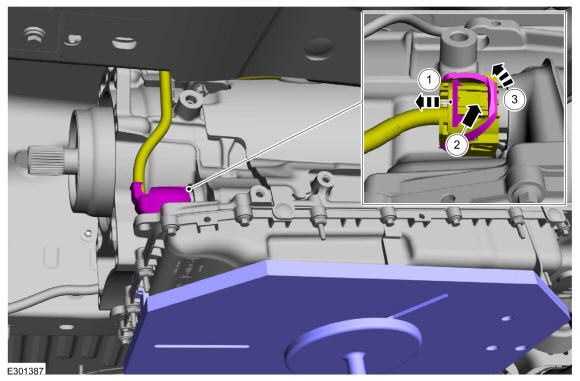

  19. NOTE: Do not pull on the wire harness to disconnect/connect the connector or damage to the connector/wire harness will occur.

    1. Slide the safety lock out.
    2. Press the connector tab in.
    3. Rotate the locking arm up and disconnect the transmission electrical connector.

    GFD514290Courtesy of FORD MOTOR COMPANY
  20. Disconnect the wiring harness connector, wiring harness retainer and position aside the harness.
    GFD514291Courtesy of FORD MOTOR COMPANY
  21. Disconnect the wiring harness retainers and position aside the harness.
    GFD514292Courtesy of FORD MOTOR COMPANY
  22. Position aside the wiring harness.
    GFD514293Courtesy of FORD MOTOR COMPANY
  23. Remove the starter studbolts and position aside the starter motor.
    GFD514294Courtesy of FORD MOTOR COMPANY
  24. Remove the starter motor insulator.
    GFD514295Courtesy of FORD MOTOR COMPANY

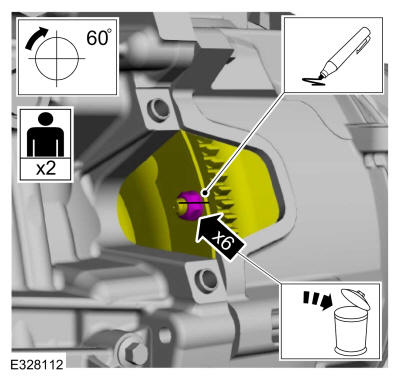

  25. NOTE: Only rotate the crankshaft in a clockwise direction.
    NOTE: Index mark one stud and the flexplate for assembly reference.

    Remove and discard the torque converter nuts.

    GFD514296Courtesy of FORD MOTOR COMPANY
  26. Disconnect the transmission vent tube.
    GFD514297Courtesy of FORD MOTOR COMPANY
  27. Remove the LH bellhousing bolt and studbolts.
    GFD514298Courtesy of FORD MOTOR COMPANY
  28. Remove the upper bellhousing studbolts.
    GFD514299Courtesy of FORD MOTOR COMPANY
  29. Remove the RH bellhousing bolts.
    GFD514300Courtesy of FORD MOTOR COMPANY

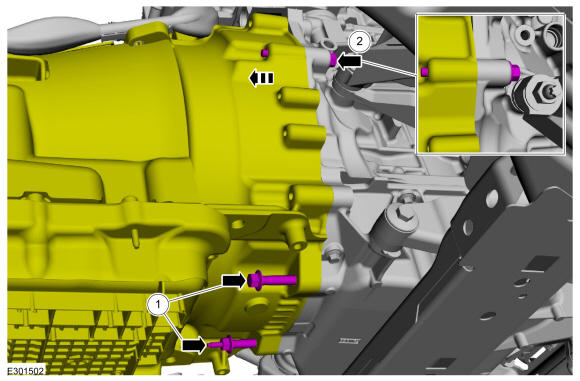

    1. multimedia:A supplement to the article is available.

      View  Loosen the lower bellhousing bolt and studbolt far enough to be used as guide pins.

    2. Loosen the upper bell housing bolt and move the transmission rearward. While moving the transmission rearward, continue to loosen the upper bellhousing bolt until the bolt is removed from the bellhousing.

    • Remove the lower bellhousing bolt and studbolt.

    GFD514301Courtesy of FORD MOTOR COMPANY
  31. Slide the transmission back enough to install the special tool and remove the transmission from the vehicle. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
    GFD514302Courtesy of FORD MOTOR COMPANY

    Rear Wheel Drive (RWD) vehicles

  32. NOTE: If installing a new or re-manufactured transmission, remove the transmission support bracket.

    If necessary, remove the bolts and the transmission support bracket.

    GFD514303Courtesy of FORD MOTOR COMPANY

    All vehicles

  33. NOTE: Failure to clean the transmission fluid cooler tubes can result in transmission failure.

    If the transmission is to be overhauled or if installing a new or re-manufactured transmission, carry out the transmission fluid cooler backflushing and cleaning procedure. Refer to: Transmission Fluid Cooler - Backflushing and Cleaning .
