Park Lock Pawl Solenoid: Installation
WARNING: This page is about a different variant/trim than selected.

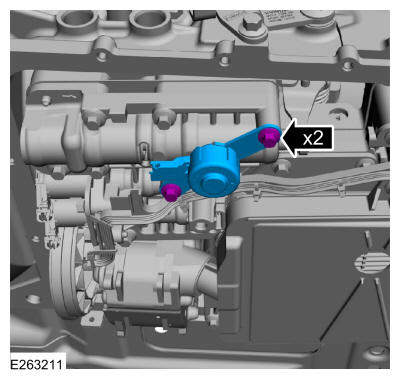

- Install the park lock pawl solenoid and the bolts.
Torque: 106 lb.in (12 Nm)

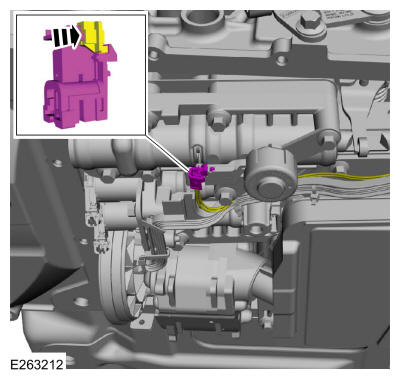

- Connect the internal wiring harness electrical connector.
- Slide the plastic lock to the locked position.
- Install the transmission fluid pan, gasket and filter. Refer to: Transmission Fluid Pan, Gasket and Filter .
