Output Shaft Seal: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Position a new output shaft seal on the special tools. Use Special Service Tool: 205-1018 Installation Tube, 307-782 Installer, Output Shaft Seal.
    GFD514244Courtesy of FORD MOTOR COMPANY

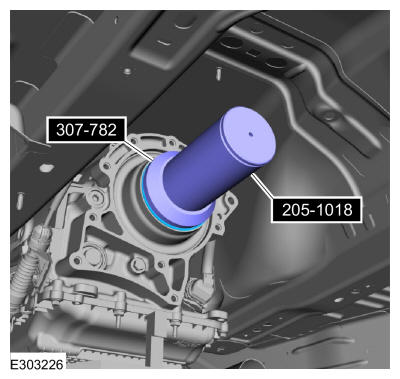

  2. Using the special tools, install the new output shaft seal. Use Special Service Tool: 205-1018 Installation Tube, 307-782 Installer, Output Shaft Seal.
    GFD514245Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

  3. Install the transfer case assembly. Refer to: Transfer Case .

    Rear Wheel Drive (RWD) vehicles

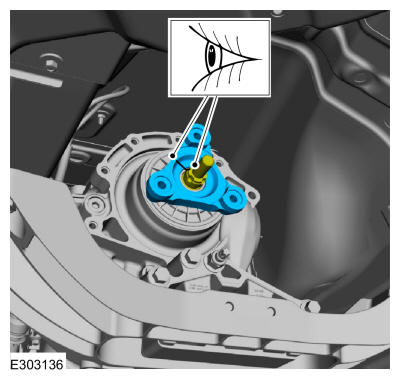

  4. NOTE: If the output shaft or output shaft flange are replaced with new parts, align laser applied ink marks.

    Align the index marks made during removal.

    GFD514246Courtesy of FORD MOTOR COMPANY

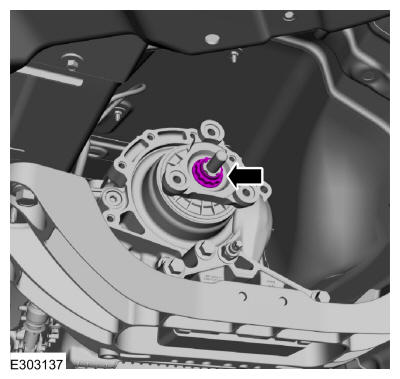

  5. Install the new output shaft flange retaining nut.

    Torque: 59 lb.ft (80 Nm)

    GFD514247Courtesy of FORD MOTOR COMPANY

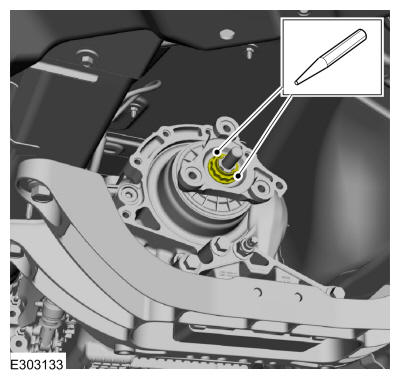

  6. After installing the new output shaft flange retaining nut, stake the slots to prevent it from coming loose. Use the General Equipment: Punch
    GFD514240Courtesy of FORD MOTOR COMPANY
  7. Install the rear driveshaft. Refer to: Rear Driveshaft .

    All vehicles

  8. Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
