Transmission Case

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	204-594 Forcing screw
Courtesy of FORD MOTOR COMPANY	205-256 Installer, Front Wheel Hub Seal TKIT-1988-FESTIVA T88C-1000-ST TKIT-1988-TRACER
Courtesy of FORD MOTOR COMPANY	307-781 Needle bearing remover/Installer

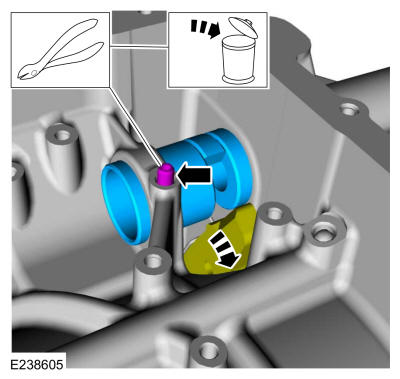

Remove and discard the park pawl actuator rod sleeve roll pin (7G100), move the park pawl out of the park pawl actuator rod sleeve and remove the park pawl actuator rod sleeve.

Courtesy of FORD MOTOR COMPANY
Remove and discard the park pawl actuator rod sleeve seals (2D330).

Courtesy of FORD MOTOR COMPANY

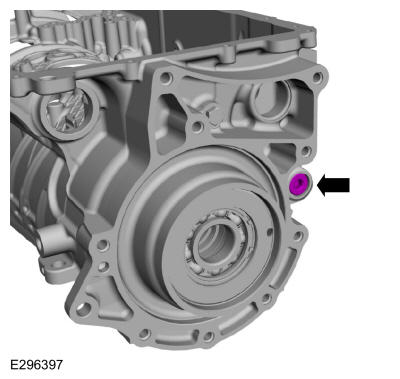

Remove the park pawl shaft plug.

Courtesy of FORD MOTOR COMPANY

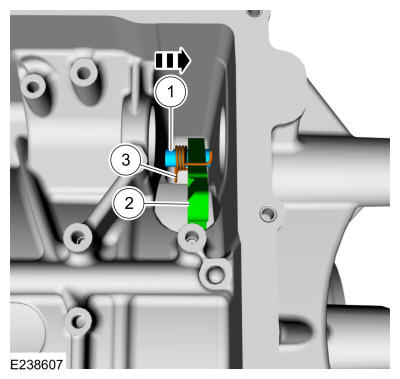

1. Disconnect the park pawl return spring to remove tension from the park pawl shaft and remove the park pawl shaft.
2. Remove the park pawl.
3. Remove the park pawl return spring.
Courtesy of FORD MOTOR COMPANY
Remove the line pressure port and rear case plugs.

Courtesy of FORD MOTOR COMPANY

Four-Wheel Drive (4WD) vehicles

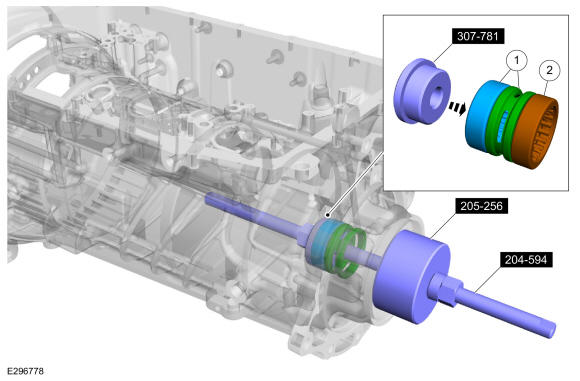

Using the special tools, remove the bearing(s) and the fluid passage sleeve.
1. All Vehicles
2. Four-Wheel Drive (4WD) vehicles only
- Use Special Service Tool: 204-594 Forcing screw, 205-256 Installer, Front Wheel Hub Seal, 307-781 Needle bearing remover/Installer.

Courtesy of FORD MOTOR COMPANY
