Valve Cover RH: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: Installation of new spark plug seals or VCT seals is only required if seals are damaged.
  1. Remove the following items:

    1. Remove the EGR valve. Refer to: Exhaust Gas Recirculation (EGR) Valve .
    2. Remove the RH ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .

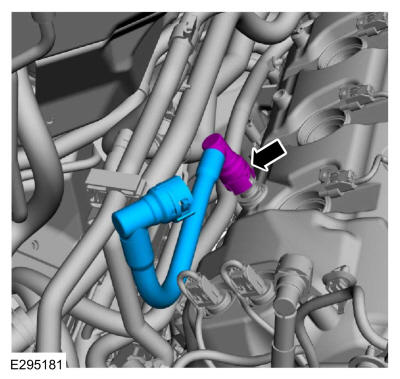

  2. Remove the PCV tube.
    GFD512089Courtesy of FORD MOTOR COMPANY

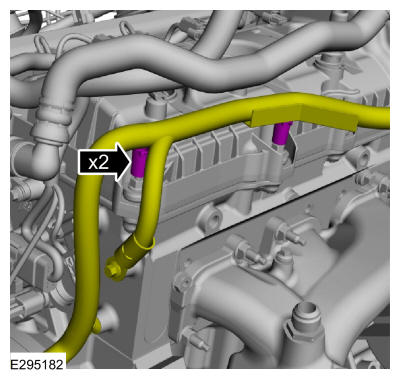

  3. Detach the wiring harness retainer from the RH rear valve cover stud bolts.
    GFD512090Courtesy of FORD MOTOR COMPANY

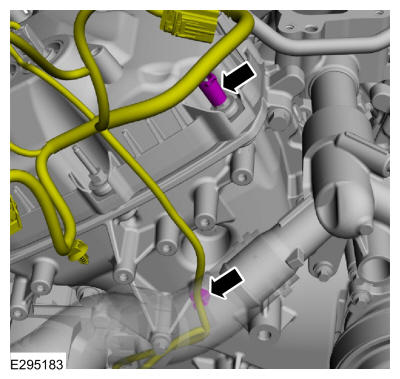

  4. Detach the wiring harness retainers.
    GFD512091Courtesy of FORD MOTOR COMPANY

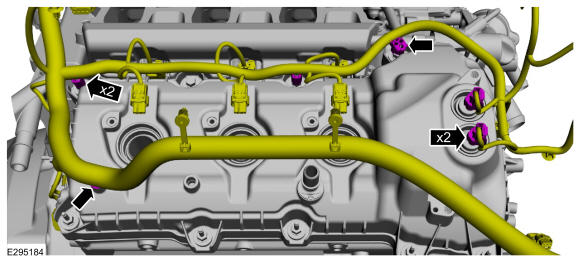

    • Disconnect the VCT oil control solenoid electrical connectors.

    • Detach the wiring harness retainers from valve cover.

    GFD512092Courtesy of FORD MOTOR COMPANY
  6. NOTE: While removing the valve cover do not apply excessive force to the VCT oil control solenoid or damage may occur.
    NOTE: If the VCT oil control solenoid sticks to the VCT seal, carefully wiggle the valve cover until the bond breaks free or damage to the VCT seal and VCT oil control solenoid may occur.

    Loosen the bolts and remove the valve cover.

    GFD511960Courtesy of FORD MOTOR COMPANY

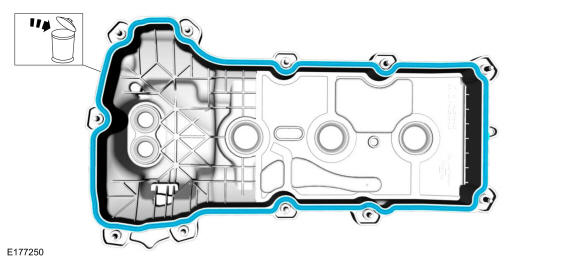

  7. Remove and discard the valve cover gasket.
    GFD512093Courtesy of FORD MOTOR COMPANY

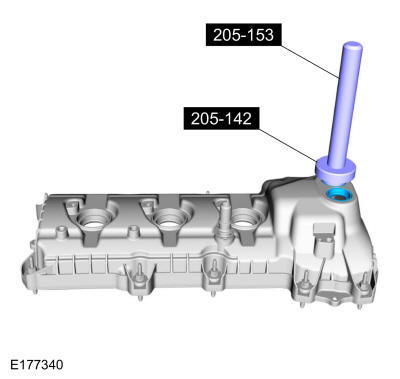

  8. NOTE: Inspect the VCT solenoid seals. Remove any damaged seals.

    If necessary, using the special tools, remove the VCT oil control solenoid seals. Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.

    GFD512094Courtesy of FORD MOTOR COMPANY
  9. NOTE: Inspect the spark plug tube seals. Remove any damaged seals.

    If necessary, using the special tools, remove the spark plug tube seals. Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer, 205-153 (T80T-4000-W) Handle.

    GFD511963Courtesy of FORD MOTOR COMPANY
  10. Make sure that the mating faces are clean and free of foreign material. Use the General Equipment: Plastic Scraper

    Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

GFD511964Courtesy of FORD MOTOR COMPANY
