Valve Cover RH: Installation
WARNING: This page is about a different variant/trim than selected.
-
NOTE: Installation of new seals is only required if damaged seals were removed.
If removed, using the special tools, install the spark plug tube seals. Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer, 205-153 (T80T-4000-W) Handle.
-
NOTE: Installation of new seals is only required if damaged seals were removed.
If removed, using the special tools, install the VCT oil control solenoid seals. Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.
-
NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned.

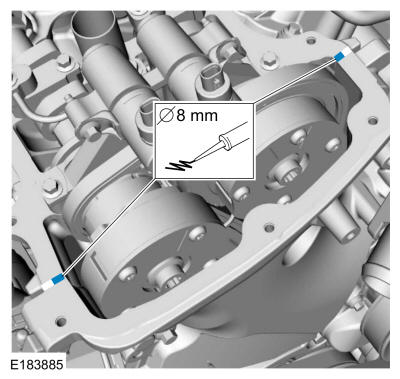

Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
- Install a new valve cover gasket.
- Install the valve cover and tighten the bolts.
Torque: 89 lb.in (10 Nm)
- Make sure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.
-
- Attach the wiring harness retainers to valve cover.
- Connect the VCT oil control solenoid electrical connectors.
- Attach the wiring harness retainers.
- Attach the wiring harness retainer to the RH rear valve cover stud bolt.
- Install the PCV tube.
- Install the following items:
- Install the RH ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .
- Install the EGR valve. Refer to: Exhaust Gas Recirculation (EGR) Valve .
