Valve Cover LH: Installation

WARNING: This page is about a different variant/trim than selected.
  1. NOTE: Installation of new seals is only required if damaged seals were removed.

    If removed, using the special tools, install the spark plug tube seals. Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer, 205-153 (T80T-4000-W) Handle.

    GFD512002Courtesy of FORD MOTOR COMPANY
  2. NOTE: Installation of new seals is only required if damaged seals were removed.

    If removed, using the special tools, install the VCT oil control solenoid seals. Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.

    GFD512003Courtesy of FORD MOTOR COMPANY

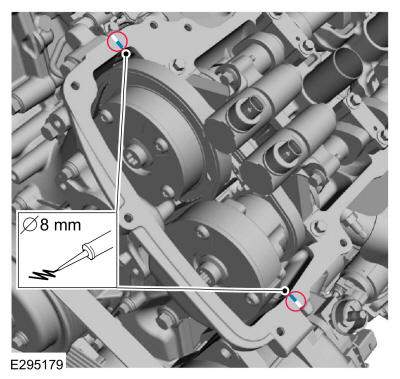

  3. NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned.

    Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD512085Courtesy of FORD MOTOR COMPANY
  4. Install a new valve cover gasket.
    GFD512005Courtesy of FORD MOTOR COMPANY

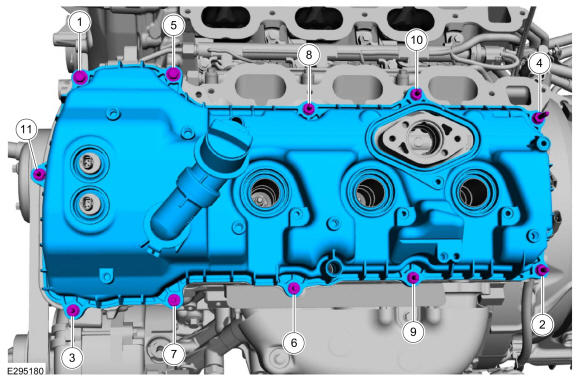

  5. Install the valve cover and tighten the bolts.

    Torque: 89 lb.in (10 Nm)

    Fig 1: LH Valve Cover Tightening Sequence
    GFD512086Courtesy of FORD MOTOR COMPANY
  6. Make sure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.
    GFD512007Courtesy of FORD MOTOR COMPANY
    • Attach the wiring harness retainers.

    • Connect the oil pressure sensor electrical connector.

    • Connect the VCT oil control solenoid electrical connectors.

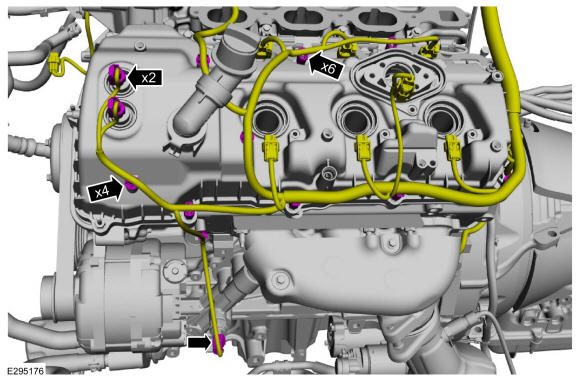

    GFD512081Courtesy of FORD MOTOR COMPANY

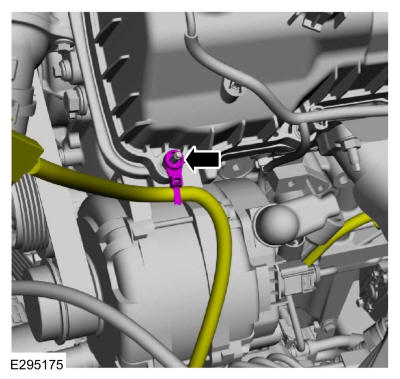

  8. If equipped, attach the block heater wiring harness retainer to the valve cover stud bolt.
    GFD512080Courtesy of FORD MOTOR COMPANY

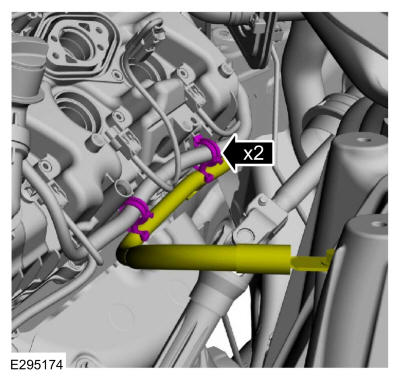

  9. Attach the ground wire retainers.
    GFD512079Courtesy of FORD MOTOR COMPANY

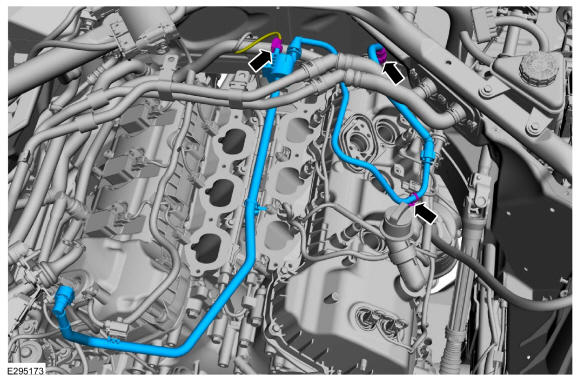

    • Install the EVAP canister purge valve and attach the retainer.

    • Connect the EVAP canister purge valve wiring harness electrical connector.

    • Connect the EVAP canister purge valve quick release coupling.

    GFD512078Courtesy of FORD MOTOR COMPANY
  11. Install the following items:

    1. Install the high-pressure fuel pump. Refer to: High-Pressure Fuel Pump .
    2. Install the LH ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .

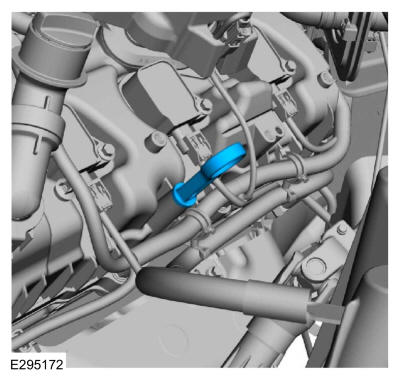

  12. Install the oil level indicator.
    GFD512077Courtesy of FORD MOTOR COMPANY

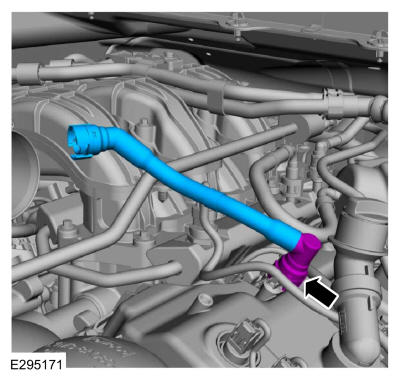

  13. Install the crankcase vent tube.
    GFD512076Courtesy of FORD MOTOR COMPANY
  14. Install the air cleaner. Refer to: Air Cleaner Outlet Pipe .

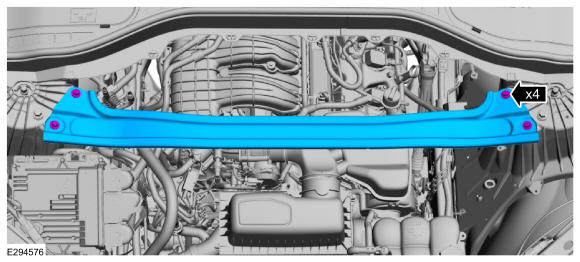

  15. Install the suspension support bar and the bolts.

    Torque: 22 lb.ft (30 Nm)

    GFD512075Courtesy of FORD MOTOR COMPANY
  16. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
