Oil Pan: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, may cause engine failure.
  1. Remove the engine. Refer to: Engine .

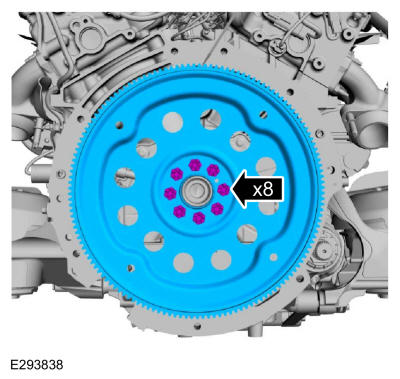

  2. Remove the bolts and the flexplate.
    GFD511922Courtesy of FORD MOTOR COMPANY
  3. Remove the crankshaft sensor ring and the engine-to-transmission spacer plate.
    GFD511923Courtesy of FORD MOTOR COMPANY
  4. NOTE: Install the engine stand bolts into the cylinder block only. Do not install the bolts into the oil pan.

    Mount the engine to the mounting stand. Use the General Equipment: Mounting Stand

    GFD511924Courtesy of FORD MOTOR COMPANY
  5. Remove the floor crane and the chains. Use the General Equipment: Floor Crane
    GFD511925Courtesy of FORD MOTOR COMPANY
  6. Remove the nuts, bolts and the RH engine mount.
    GFD511926Courtesy of FORD MOTOR COMPANY
  7. Remove the bolts and the LH engine mount.
    GFD511927Courtesy of FORD MOTOR COMPANY
  8. Remove the bolts and the LH axle connector.
    GFD511928Courtesy of FORD MOTOR COMPANY
  9. Remove and discard the axle connector seal.
    GFD511929Courtesy of FORD MOTOR COMPANY
  10. Remove the bolts and the front axle assembly.
    GFD511930Courtesy of FORD MOTOR COMPANY
  11. Remove and discard the front axle assembly seal.
    GFD511931Courtesy of FORD MOTOR COMPANY
  12. Remove the crankcase vent tube.
    GFD511932Courtesy of FORD MOTOR COMPANY
  13. Remove the crankshaft pulley bolt and washer.
    GFD511933Courtesy of FORD MOTOR COMPANY
  14. NOTE: Use a universal puller (such as an OTC 6667, or equivalent).

    Using a universal puller, remove the crankshaft pulley.

    GFD511934Courtesy of FORD MOTOR COMPANY
  15. Install the original crankshaft pulley bolt and washer.
    GFD511935Courtesy of FORD MOTOR COMPANY
  16. Using the special tool, remove and discard the crankshaft front seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
    GFD511936Courtesy of FORD MOTOR COMPANY
    • Remove the crankshaft pulley bolt and washer.

    • Discard the bolt.

    GFD511937Courtesy of FORD MOTOR COMPANY
    • Remove the bolts and the coolant pump pulley.

    • Remove the bolts and the accessory drive belt tensioner.

    GFD511938Courtesy of FORD MOTOR COMPANY
  19. Remove the bolt and the upper intake manifold support bracket.
    GFD511939Courtesy of FORD MOTOR COMPANY

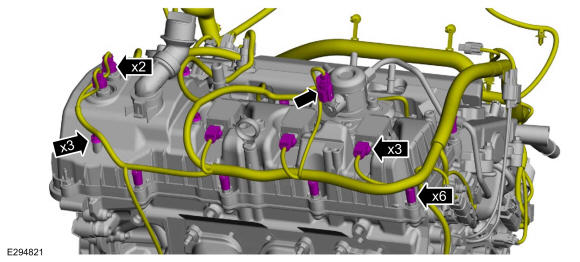

    • Disconnect the high-pressure fuel pump electrical connector.

    • Disconnect the VCT oil control solenoids electrical connectors.

    • Disconnect the ignition coil-on-plug electrical connectors.

    • Detach the wiring harness retainers.

    GFD511940Courtesy of FORD MOTOR COMPANY

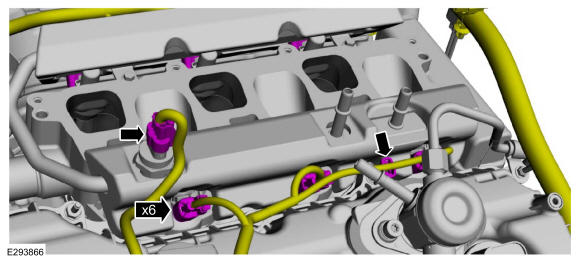

    • Disconnect the FRP temperature sensor electrical connector.

    • Detach the wiring harness retainer.

    • Disconnect the port injector fuel rail electrical connectors.

    GFD511941Courtesy of FORD MOTOR COMPANY
  22. Disconnect the oil pressure control solenoid valve electrical connector and detach the wiring harness retainers.
    GFD511942Courtesy of FORD MOTOR COMPANY

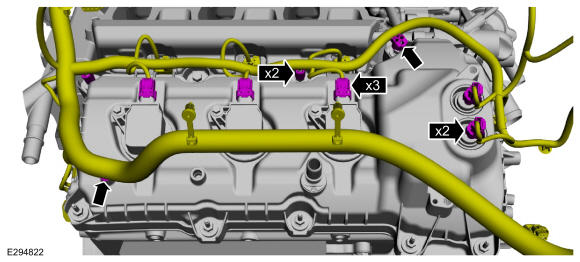

    • Disconnect the VCT oil control solenoids electrical connectors.

    • Disconnect the ignition coil-on-plug electrical connectors.

    • Detach the wiring harness retainers and position the engine wiring harness aside.

    GFD511943Courtesy of FORD MOTOR COMPANY
    • Remove and discard the high-pressure fuel pump to direct injection fuel rail tube nut.

    • Loosen the high-pressure fuel pump to direct injection fuel rail tube flare nuts.

    • Remove and discard the high-pressure fuel pump to direct injection fuel rail tube.

    GFD511944Courtesy of FORD MOTOR COMPANY
  25. NOTE: Alternately loosen the high-pressure fuel pump bolts one complete revolution at a time.

    Remove the bolts and the high-pressure fuel pump.

    GFD511945Courtesy of FORD MOTOR COMPANY
  26. Remove and discard the high-pressure fuel pump O-ring seal.
    GFD511946Courtesy of FORD MOTOR COMPANY
  27. Remove the high-pressure fuel pump roller tappet.
    GFD511947Courtesy of FORD MOTOR COMPANY
  28. Inspect the high-pressure fuel pump roller tappet. If any flat spots or scoring are found, especially in the indicated areas, then inspect the high-pressure fuel pump and the high-pressure fuel pump roller tappet drive lobe. Install new components as needed.
    GFD511948Courtesy of FORD MOTOR COMPANY
  29. Loosen the high-pressure fuel pump mounting plate bolt and remove the mounting plate.
    GFD511949Courtesy of FORD MOTOR COMPANY
  30. Remove and discard the high-pressure fuel pump mounting plate seal.
    GFD511950Courtesy of FORD MOTOR COMPANY
  31. Remove and discard the high-pressure fuel pump mounting plate O-ring seals.
    GFD511951Courtesy of FORD MOTOR COMPANY
    • NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.
      NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

      Remove the bolts and the ignition coil-on-plugs.

    • Remove the oil level indicator.

    GFD511952Courtesy of FORD MOTOR COMPANY
  33. Inspect the coil seals for rips, nicks or tears and replace if necessary.
    GFD511953Courtesy of FORD MOTOR COMPANY
  34. NOTE: While removing the valve cover do not apply excessive force to the VCT oil control solenoid or damage may occur.
    NOTE: If the VCT oil control solenoid sticks to the VCT seal, carefully wiggle the valve cover until the bond breaks free or damage to the VCT seal and VCT oil control solenoid may occur.

    Loosen the bolts, stud bolts and the LH valve cover.

    GFD511954Courtesy of FORD MOTOR COMPANY
  35. Discard the valve cover gasket.
    GFD511955Courtesy of FORD MOTOR COMPANY
  36. NOTE: Inspect the VCT solenoid seals. Remove any damaged seals.

    Using the special tools, remove and discard the seal(s). Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.

    GFD511956Courtesy of FORD MOTOR COMPANY

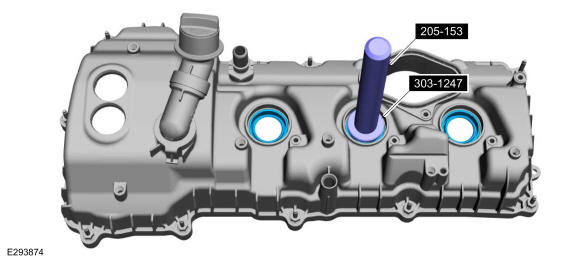

  37. NOTE: Inspect the spark plug tube seals. Remove any damaged seals.

    Using the special tools, remove and discard the seal(s). Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    GFD511957Courtesy of FORD MOTOR COMPANY

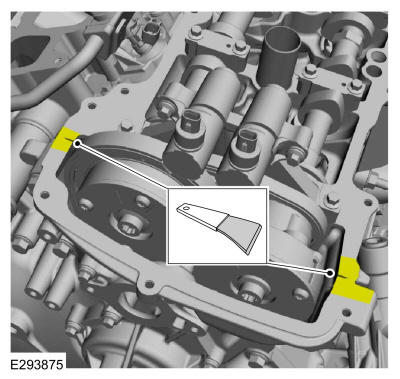

  38. Make sure that the mating faces are clean and free of foreign material. Use the General Equipment: Plastic Scraper

    Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    GFD511958Courtesy of FORD MOTOR COMPANY

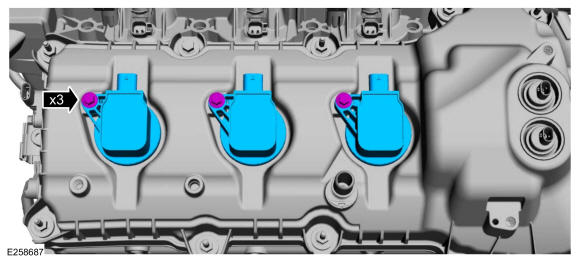

  39. NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.
    NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

    Remove the bolts and the ignition coil-on-plugs.

    GFD511959Courtesy of FORD MOTOR COMPANY
  40. Inspect the coil seals for rips, nicks or tears and replace if necessary.
    GFD511953Courtesy of FORD MOTOR COMPANY
  41. NOTE: While removing the valve cover do not apply excessive force to the VCT oil control solenoid or damage may occur.
    NOTE: If the VCT oil control solenoid sticks to the VCT seal, carefully wiggle the valve cover until the bond breaks free or damage to the VCT seal and VCT oil control solenoid may occur.

    Loosen the bolts and remove the RH valve cover.

    GFD511960Courtesy of FORD MOTOR COMPANY

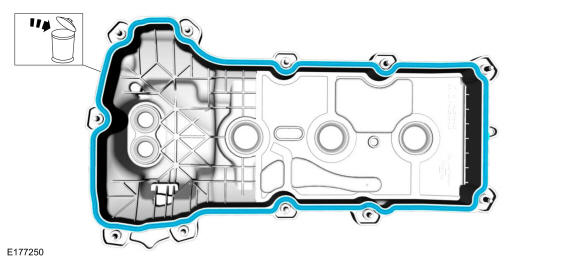

  42. Discard the valve cover gasket.
    GFD511961Courtesy of FORD MOTOR COMPANY

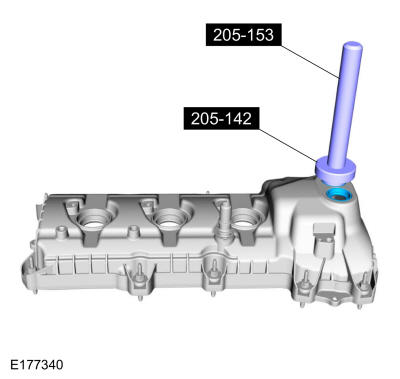

  43. NOTE: Inspect the VCT solenoid seals. Remove any damaged seals.

    Using the special tools, remove and discard the seal(s). Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.

    GFD511962Courtesy of FORD MOTOR COMPANY
  44. NOTE: Inspect the spark plug tube seals. Remove any damaged seals.

    Using the special tools, remove and discard the seal(s). Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    GFD511963Courtesy of FORD MOTOR COMPANY
  45. Make sure that the mating faces are clean and free of foreign material. Use the General Equipment: Plastic Scraper

    Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    GFD511964Courtesy of FORD MOTOR COMPANY

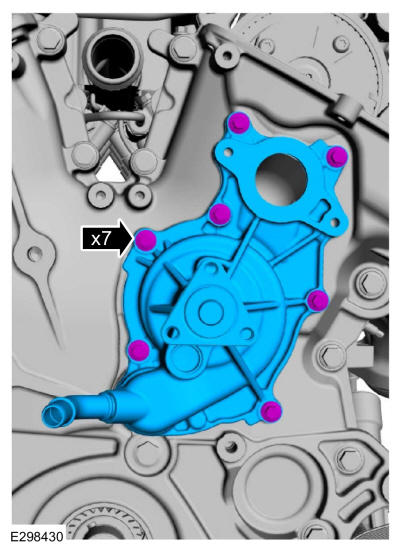

  46. Remove the bolts and the coolant pump.
    GFD511965Courtesy of FORD MOTOR COMPANY
  47. Remove and discard the coolant pump gasket and O-ring seal.
    GFD511966Courtesy of FORD MOTOR COMPANY

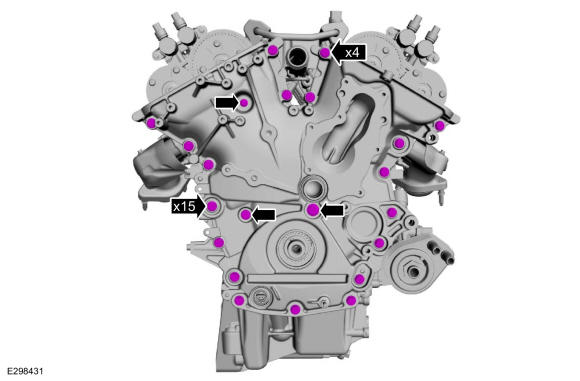

  48. Remove the engine front cover bolts.
    GFD511967Courtesy of FORD MOTOR COMPANY

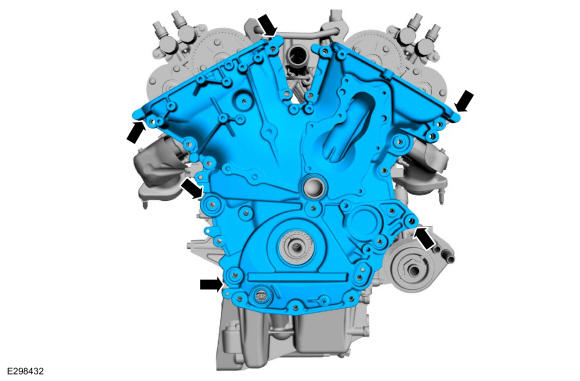

  49. Using a pry tool, locate the pry pads shown and pry the engine front cover loose and remove.
    GFD511968Courtesy of FORD MOTOR COMPANY

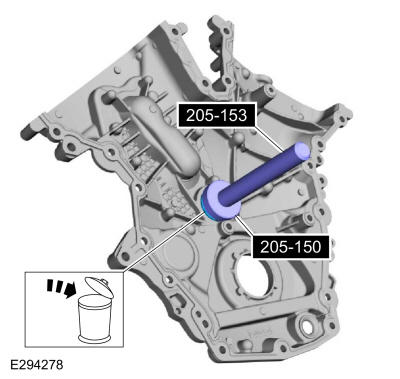

  50. Using the special tools, remove the engine front cover to coolant pipe seal. Use Special Service Tool: 205-150 (T80T-4000-S) Installer, Spindle Bearing, 205-153 (T80T-4000-W) Handle.
    GFD511969Courtesy of FORD MOTOR COMPANY

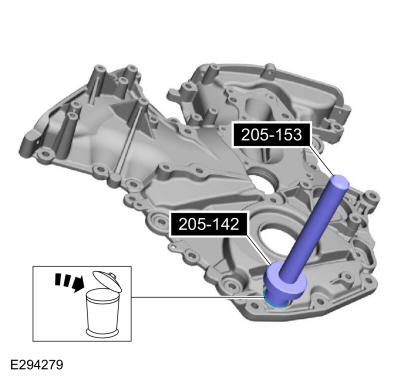

  51. Using the special tools, remove and discard the oil pump electrical connector seal. Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.
    GFD511970Courtesy of FORD MOTOR COMPANY

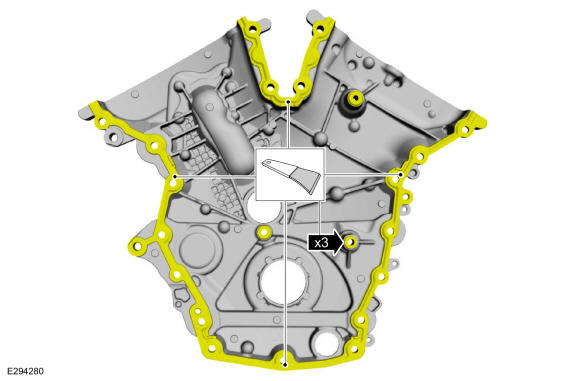

  52. NOTE: Only use a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 rpm, to clean the engine front cover. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean front cover.

    • Make sure that the mating faces of the front cover are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

      Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    • Thoroughly wash the engine front cover to remove any foreign material, including any abrasive particles created during the cleaning process.

    GFD511971Courtesy of FORD MOTOR COMPANY

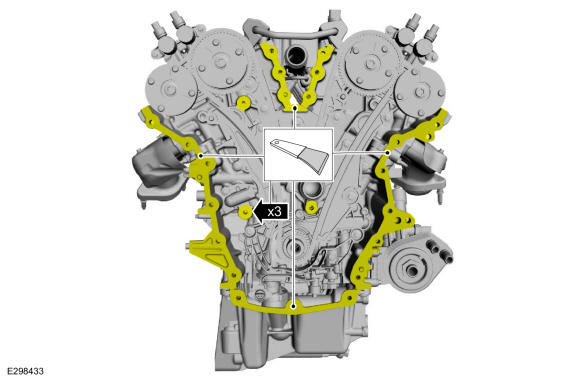

  53. NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
    NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white part number 07528) to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. They also cause contamination that will cause premature engine failure. Remove all traces of the gasket.

    Make sure that the mating faces of the engine block and oil pan are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    GFD511972Courtesy of FORD MOTOR COMPANY
    • Rotate the engine so the oil pan is facing upwards.

    • Remove the oil pan bolts.

    GFD511973Courtesy of FORD MOTOR COMPANY
  55. Using a pry tool, locate the pry pads at the side of the oil pan and pry the oil pan loose and remove.
    GFD511974Courtesy of FORD MOTOR COMPANY
  56. Remove the bolt and the oil pump screen and pickup tube.
    GFD511975Courtesy of FORD MOTOR COMPANY
  57. Remove and discard the oil pump screen and pickup tube O-ring seal.
    GFD511976Courtesy of FORD MOTOR COMPANY
  58. NOTE: Only use a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 rpm, to clean the oil pan. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean. These tools cause scratches and gouges that make leak paths.

    • Make sure that the mating faces of the oil pan are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

      Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    • Thoroughly wash the oil pan to remove any foreign material, including any abrasive particles created during the cleaning process.

    GFD511977Courtesy of FORD MOTOR COMPANY
  59. Remove and discard the oil pan-to-oil pump seal.
    GFD511978Courtesy of FORD MOTOR COMPANY
  60. NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces of the engine block. These tools cause scratches and gouges that make leak paths. They also cause contamination that causes premature engine failure. Remove all traces of the gasket.

    Make sure that the mating faces of the engine block are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

GFD511979Courtesy of FORD MOTOR COMPANY
