Front Cover to Coolant Pipe Seal: Installation

WARNING: This page is about a different variant/trim than selected.

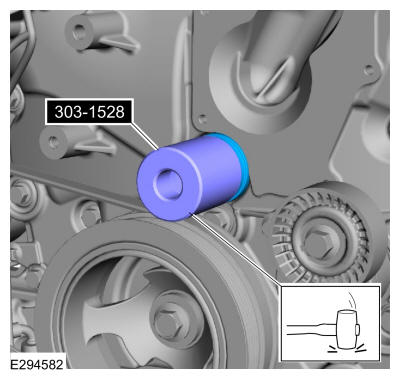

    • Using the special tool, install the front cover to coolant pipe seal. Use Special Service Tool: 303-1528 Remover/Installer, Water Tube Seal.

    • Position the front cover to coolant pipe seal on the special tool.

    • Position the special tool into the engine front cover.

    • Using a brass hammer, tap the special tool until the front cover to coolant pipe seal bottoms out.

    GFD511893Courtesy of FORD MOTOR COMPANY

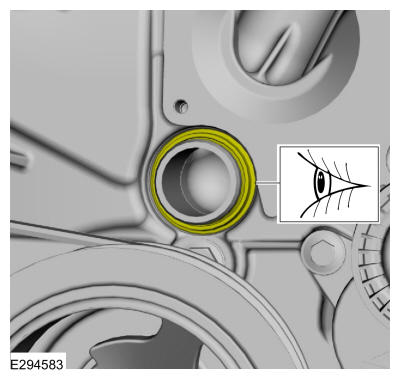

  2. Inspect the front cover to coolant pipe seal for proper installation or damage.
    GFD511894Courtesy of FORD MOTOR COMPANY
  3. Install the coolant pump. Refer to: Coolant Pump .
