Engine Mount RH: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Using a holding device, hold the steering wheel.
    GFD511832Courtesy of FORD MOTOR COMPANY
  3. Remove the bolts and the suspension support bar.
    GFD511833Courtesy of FORD MOTOR COMPANY
  4. Remove the following items:

    1. Remove the throttle body. Refer to: Throttle Body .
    2. Remove the air cleaner. Refer to: Air Cleaner .
    3. Remove the cowl panel. Refer to: Cowl Panel .

    • Remove the bolt and disconnect the steering shaft.

    • Discard the bolt.

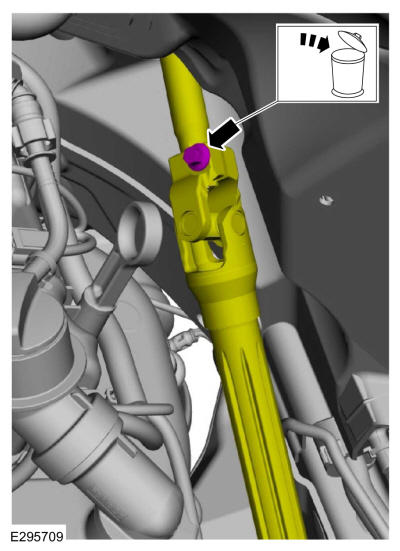

    GFD511834Courtesy of FORD MOTOR COMPANY
  6. Remove the retainers and the upper radiator panel.
    GFD511794Courtesy of FORD MOTOR COMPANY
  7. Using cable ties or mechanics wire through the upper location holes, to support the cooling module. Use the General Equipment: Cable Ties
    GFD511835Courtesy of FORD MOTOR COMPANY
  8. Remove the engine front cover bolt and install the special tool in the top hole of the engine front cover. Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
    GFD511836Courtesy of FORD MOTOR COMPANY
  9. NOTE: Make sure to use the round feet on the shock towers or damage may occur.

    Install Special Service Tool: 303-F072 Support Bar, Engine.

    GFD511837Courtesy of FORD MOTOR COMPANY
  10. Remove the LH and RH front wheels and tires. Refer to: Wheel and Tire .
  11. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the LH sway bar link aside.

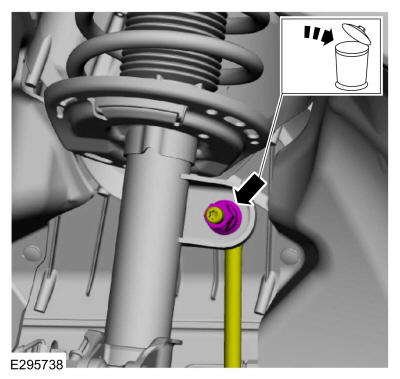

    GFD511838Courtesy of FORD MOTOR COMPANY

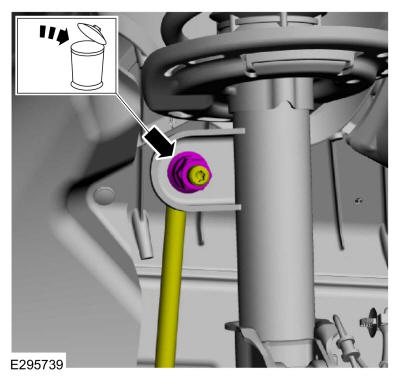

  12. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the RH sway bar link aside.

    GFD511839Courtesy of FORD MOTOR COMPANY
    • Remove pin-type retainer.

    • Remove the bolts and the underbody shield.

    GFD511840Courtesy of FORD MOTOR COMPANY
  14. Remove the pin-type retainer, bolts and the rear underbody shield.
    GFD511841Courtesy of FORD MOTOR COMPANY
  15. Remove the RH catalytic converter. Refer to: Catalytic Converter RH .
  16. Remove the steering shield pin-type retainers from the RH subframe.
    GFD511842Courtesy of FORD MOTOR COMPANY
  17. Remove the splash shield pin-type retainer from the RH subframe.
    GFD511843Courtesy of FORD MOTOR COMPANY
  18. Detach the HO2S wiring harness retainers from the RH subframe.
    GFD511844Courtesy of FORD MOTOR COMPANY
  19. Remove the steering shield pin-type retainers from the LH subframe.
    GFD511845Courtesy of FORD MOTOR COMPANY
  20. Remove the splash shield pin-type retainer from the LH subframe and position aside.
    GFD511846Courtesy of FORD MOTOR COMPANY
  21. Detach the HO2S wiring harness retainers from the LH subframe.
    GFD511847Courtesy of FORD MOTOR COMPANY
  22. Remove the front radiator support bar bolts.
    GFD511848Courtesy of FORD MOTOR COMPANY

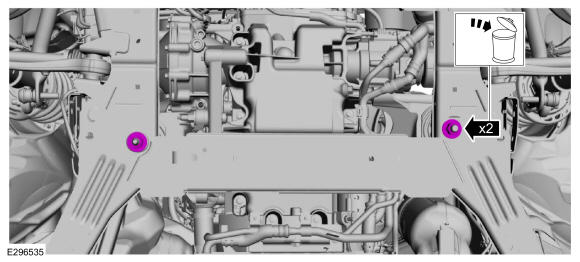

  23. NOTE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.

    • Remove the LH and RH engine mount nuts.

    • Discard the engine mount nuts.

    GFD511849Courtesy of FORD MOTOR COMPANY
  24. Remove the bolt and position the RH underbody shield aside.
    GFD511850Courtesy of FORD MOTOR COMPANY
  25. Remove the bolt and position the LH underbody shield aside.
    GFD511851Courtesy of FORD MOTOR COMPANY
  26. Mark the front subframe location.

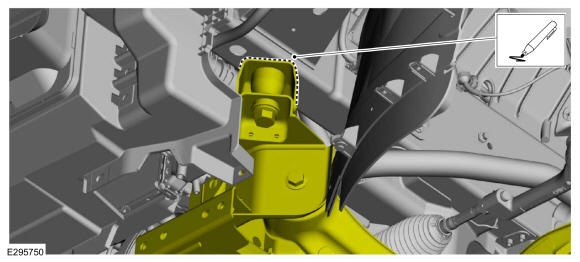

    GFD511852Courtesy of FORD MOTOR COMPANY
  27. Mark the rear subframe location.

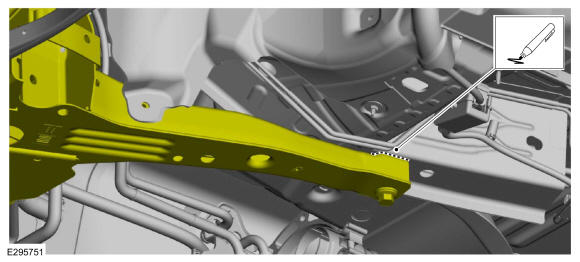

    GFD511853Courtesy of FORD MOTOR COMPANY
  28. Support the front and rear of the subframe with adjustable jack stands.
    GFD511854Courtesy of FORD MOTOR COMPANY

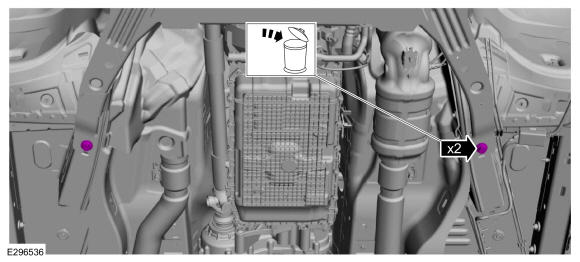

    • Remove the rear subframe bolts.

    • Discard the bolts.

    GFD511855Courtesy of FORD MOTOR COMPANY
    • Remove the middle subframe bolts.

    • Discard the bolts.

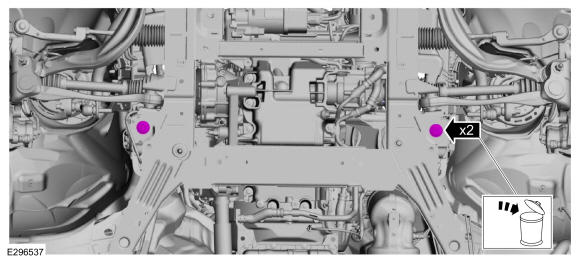

    GFD511856Courtesy of FORD MOTOR COMPANY
    • Remove the front subframe bolts.

    • Discard the bolts.

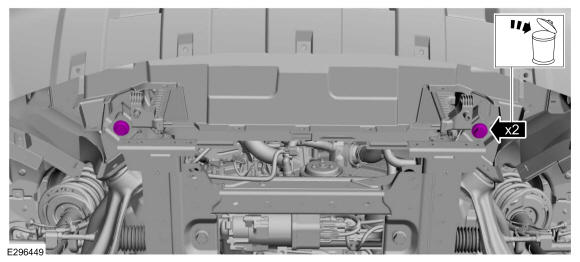

    GFD511857Courtesy of FORD MOTOR COMPANY

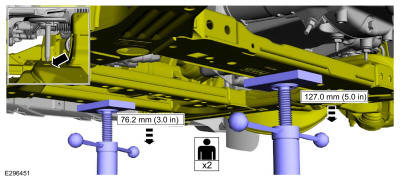

  32. With the aid of an assistant, lower the front jack stand 76.2 mm (3.0 in) and the rear jack stand 127.0 mm (5.0 in) evenly or until engine mount stud clears the subframe.
    GFD511858Courtesy of FORD MOTOR COMPANY
    • Remove the nuts, bolts and the RH engine mount.

    • Discard the nuts and bolts.

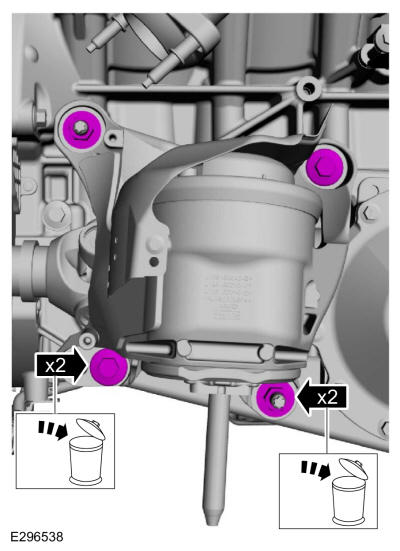

    GFD511859Courtesy of FORD MOTOR COMPANY
    • Remove the engine mount studs and the RH engine mount.

    • Discard the studs.

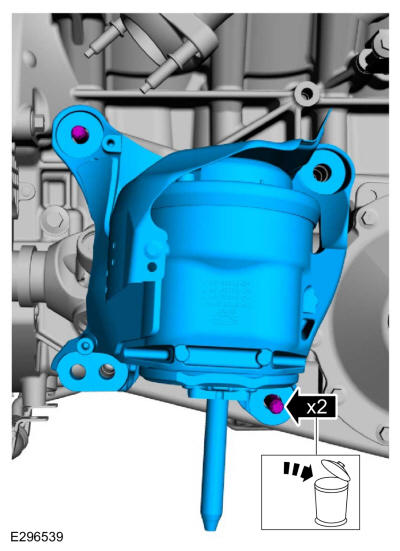

GFD511860Courtesy of FORD MOTOR COMPANY
